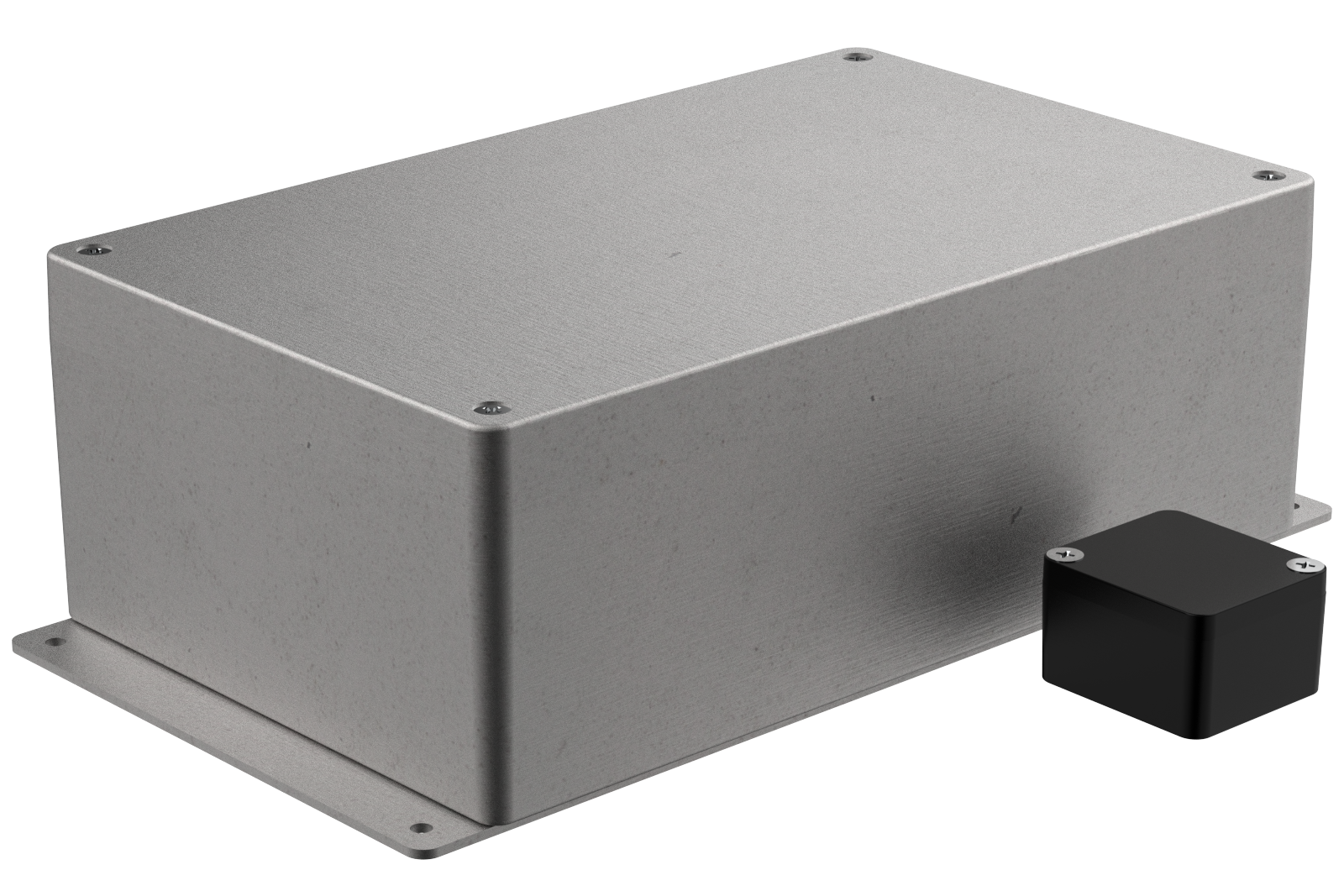

AN Series Diecast Aluminum NEMA Enclosures

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
Diecast Aluminum EnclosureAN-00FDetails3.54 x 1.42 x 1.18 in.
89.92 x 36.07 x 29.97 mm
0.32 lbs.
3d fileDWGPDF
AN Series EnclosureAN-00PDetails3.54 x 1.42 x 1.18 in.
89.92 x 36.07 x 29.97 mm
0.32 lbs.
3d fileDWGPDF
AN-01F-01AN-01FDetails2.52 x 2.28 x 1.38 in.
64.01 x 57.91 x 35.05 mm
0.32 lbs.
3d fileDWGPDF
AN-01P-01AN-01PDetails2.52 x 2.28 x 1.38 in.
64.01 x 57.91 x 35.05 mm
0.32 lbs.
3d fileDWGPDF
AN-02F-01AN-02FDetails4.53 x 2.56 x 1.18 in.
115.06 x 65.02 x 29.97 mm
0.50 lbs.
3d fileDWGPDF
AN-02P-01AN-02PDetails4.53 x 2.56 x 1.18 in.
115.06 x 65.02 x 29.97 mm
0.50 lbs.
3d fileDWGPDF
AN-03FDetails4.53 x 2.56 x 2.17 in.
115.06 x 65.02 x 55.12 mm
0.75 lbs.
3d fileDWGPDF
AN-03PDetails4.53 x 2.56 x 2.17 in.
115.06 x 65.02 x 55.12 mm
0.75 lbs.
3d fileDWGPDF
AN-04FDetails4.53 x 3.54 x 2.17 in.
115.06 x 89.92 x 55.12 mm
0.86 lbs.
3d fileDWGPDF
AN-04PDetails4.53 x 3.54 x 2.17 in.
115.06 x 89.92 x 55.12 mm
0.86 lbs.
3d fileDWGPDF
AN-05FDetails5.83 x 4.25 x 2.95 in.
148.08 x 107.95 x 74.93 mm
1.50 lbs.
3d fileDWGPDF
AN-05PDetails5.83 x 4.25 x 2.95 in.
148.08 x 107.95 x 74.93 mm
1.50 lbs.
3d fileDWGPDF
AN-06FDetails6.73 x 4.76 x 2.17 in.
170.94 x 120.90 x 55.12 mm
1.50 lbs.
3d fileDWGPDF
AN-06PDetails6.73 x 4.76 x 2.17 in.
170.94 x 120.90 x 55.12 mm
1.50 lbs.
3d fileDWGPDF
AN-07F-01AN-07FDetails8.76 x 5.75 x 2.17 in.
222.50 x 146.05 x 55.12 mm
3.10 lbs.
3d fileDWGPDF
AN-07PDetails8.76 x 5.75 x 2.17 in.
222.50 x 146.05 x 55.12 mm
3.10 lbs.
3d fileDWGPDF
AN-08FDetails8.76 x 5.75 x 3.24 in.
222.50 x 146.05 x 82.30 mm
4.36 lbs.
3d fileDWGPDF
AN-08PDetails8.76 x 5.75 x 3.24 in.
222.50 x 146.05 x 82.30 mm
4.36 lbs.
3d fileDWGPDF
AN-09F-01AN-09FDetails4.75 x 4.75 x 4.00 in.
120.65 x 120.65 x 101.60 mm
1.88 lbs.
3d fileDWGPDF
AN-09PDetails4.75 x 4.75 x 4.00 in.
120.65 x 120.65 x 101.60 mm
1.88 lbs.
3d fileDWGPDF
AN-10F-01AN-10FDetails6.25 x 6.25 x 4.00 in.
158.75 x 158.75 x 101.60 mm
2.19 lbs.
3d fileDWGPDF
AN-10PDetails6.25 x 6.25 x 4.00 in.
158.75 x 158.75 x 101.60 mm
2.19 lbs.
3d fileDWGPDF
AN-11F-01AN-11FDetails1.97 x 1.77 x 1.12 in.
50.04 x 44.96 x 28.45 mm
0.16 lbs.
3d fileDWGPDF
AN-11P-01AN-11PDetails1.97 x 1.77 x 1.12 in.
50.04 x 44.96 x 28.45 mm
0.16 lbs.
3d fileDWGPDF
AN-12-01AN-12FDetails3.85 x 2.52 x 1.35 in.
97.79 x 64.01 x 34.29 mm
0.43 lbs.
3d fileDWGPDF
AN-12P-01AN-12PDetails3.85 x 2.52 x 1.35 in.
97.79 x 64.01 x 34.29 mm
0.43 lbs.
3d fileDWGPDF
AN-13FDetails4.90 x 3.14 x 1.59 in.
124.46 x 79.76 x 40.39 mm
0.78 lbs.
3d fileDWGPDF
AN-13PDetails4.90 x 3.14 x 1.59 in.
124.46 x 79.76 x 40.39 mm
0.78 lbs.
3d fileDWGPDF
AN-14FDetails4.90 x 3.14 x 2.26 in.
124.46 x 79.76 x 57.40 mm
0.94 lbs.
3d fileDWGPDF
AN-14PDetails4.90 x 3.14 x 2.26 in.
124.46 x 79.76 x 57.40 mm
0.94 lbs.
3d fileDWGPDF
AN-15F-01AN-15FDetails5.91 x 2.52 x 1.45 in.
150.11 x 64.01 x 36.83 mm
0.78 lbs.
3d fileDWGPDF
AN-15PDetails5.91 x 2.52 x 1.45 in.
150.11 x 64.01 x 36.83 mm
0.78 lbs.
3d fileDWGPDF
AN-16FDetails6.29 x 3.93 x 2.37 in.
159.77 x 99.82 x 60.20 mm
1.43 lbs.
3d fileDWGPDF
AN-16PDetails6.29 x 3.93 x 2.37 in.
159.77 x 99.82 x 60.20 mm
1.43 lbs.
3d fileDWGPDF
AN-17FDetails6.29 x 3.93 x 3.19 in.
159.77 x 99.82 x 81.03 mm
1.71 lbs.
3d fileDWGPDF
AN-17PDetails6.29 x 3.93 x 3.19 in.
159.77 x 99.82 x 81.03 mm
1.71 lbs.
3d fileDWGPDF
AN-18F-01AN-18FDetails2.19 x 1.61 x 1.22 in.
55.63 x 40.89 x 30.99 mm
0.16 lbs.
3d fileDWGPDF
AN-18P-01AN-18PDetails2.19 x 1.61 x 1.22 in.
55.63 x 40.89 x 30.99 mm
0.16 lbs.
3d fileDWGPDF
AN-19F-01AN-19FDetails3.13 x 2.93 x 2.05 in.
79.50 x 74.42 x 52.07 mm
0.50 lbs.
3d fileDWGPDF
AN-19P-01AN-19PDetails3.13 x 2.93 x 2.05 in.
79.50 x 74.42 x 52.07 mm
0.50 lbs.
3d fileDWGPDF
AN-20FAN-20FDetails4.04 x 2.07 x 1.00 in.
102.62 x 52.58 x 25.40 mm
0.21 lbs.
3d fileDWGPDF
AN-20P-01AN-20PDetails4.04 x 2.07 x 1.00 in.
102.62 x 52.58 x 25.40 mm
0.21 lbs.
3d fileDWGPDF
AN-21F-01AN-21FDetails6.89 x 3.15 x 2.36 in.
175.01 x 80.01 x 59.94 mm
1.02 lbs.
3d fileDWGPDF
AN-21PDetails6.89 x 3.15 x 2.36 in.
175.01 x 80.01 x 59.94 mm
1.02 lbs.
3d fileDWGPDF
AN-22F-01AN-22FDetails7.87 x 4.72 x 2.95 in.
199.90 x 119.89 x 74.93 mm
1.70 lbs.
3d fileDWGPDF
AN-22PAN-22PDetails7.87 x 4.72 x 2.95 in.
199.90 x 119.89 x 74.93 mm
1.70 lbs.
3d fileDWGPDF
AN-23F-01AN-23FDetails10.24 x 6.30 x 3.56 in.
260.10 x 160.02 x 90.42 mm
3.43 lbs.
3d fileDWGPDF
AN-23PDetails10.24 x 6.30 x 3.56 in.
260.10 x 160.02 x 90.42 mm
3.43 lbs.
3d fileDWGPDF
