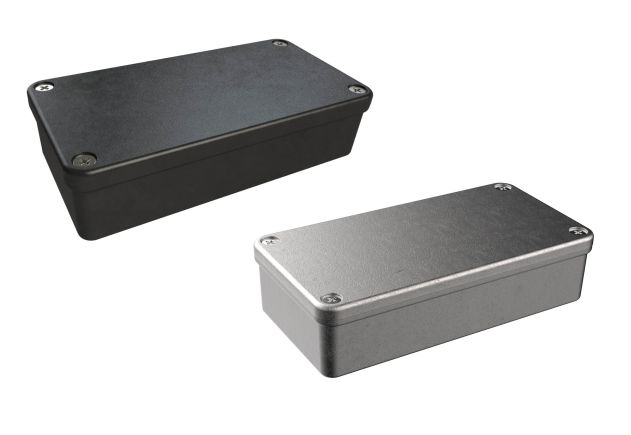

AN-20P Diecast Aluminum NEMA Enclosure
4.04 x 2.07 x 1.00 in / 102.62 x 52.58 x 25.40 mm
View Details
In stock
- #ADC-12 alloy die cast aluminum box
- UL & cUL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
- Captive, stainless steel screws thread through cover into base
- Rated to IP67 & IP68
- Watertight gasket (installation required)
- Provides a degree of inherent EMI/RFI attenuation
- Captive, stainless steel screws thread through cover into base
- Natural or black (powder coated) finish
| Color | ||
|---|---|---|
| Part # | Natural | Black |
| AN-20P-01 | ||
| AN-20P-02 | ||
Optional Accessories Include:
- Internal aluminum mounting panel and screws - AN-20K
- Internal PCB mounting boss screws - AN PCB Screws
- Flange kit for surface mounting - AN-90 Flange Kit
Models, Drawings, Material Specs and Other Files
3D Model
AN-20P STEP
2D Drawing
AN-20P DWG
2D Drawing
AN-20P PDF
Material Spec
AN Material Specs
Other Files
AN-20P Printing Template
