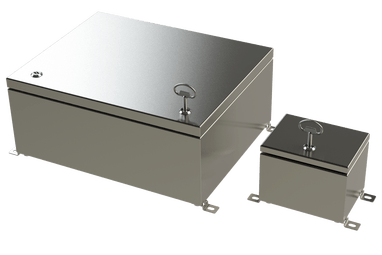

SA Series NEMA Stainless Steel Enclosures

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
SA-30SA-30Details9.84 x 7.87 x 5.91 in.
249.94 x 199.90 x 150.11 mm
8.75 lbs.
3d fileDWGPDF
stainless steel enclosuresSA-31Details11.81 x 9.84 x 5.91 in.
299.97 x 249.94 x 150.11 mm
11.86 lbs.
3d fileDWGPDF
SA-32Details11.81 x 9.84 x 7.87 in.
299.97 x 249.94 x 199.90 mm
13.30 lbs.
3d fileDWGPDF
	stainless steel enclosuresSA-33Details11.81 x 11.81 x 5.91 in.
299.97 x 299.97 x 150.11 mm
13.50 lbs.
3d fileDWGPDF
SA-34SA-34Details11.81 x 11.81 x 7.87 in.
299.97 x 299.97 x 199.90 mm
15.10 lbs.
3d fileDWGPDF
SA-35Details15.75 x 11.81 x 5.91 in.
400.05 x 299.97 x 150.11 mm
16.40 lbs.
3d fileDWGPDF
SA-36SA-36Details15.75 x 11.81 x 7.87 in.
400.05 x 299.97 x 199.90 mm
19.75 lbs.
3d fileDWGPDF
stainless steel enclosuresSA-37Details15.75 x 15.75 x 7.87 in.
400.05 x 400.05 x 199.90 mm
22.50 lbs.
3d fileDWGPDF
SA-38Details7.87 x 5.91 x 5.91 in.
199.90 x 150.11 x 150.11 mm
5.20 lbs.
3d fileDWGPDF
SA-39SA-39Details7.87 x 7.87 x 3.98 in.
199.90 x 199.90 x 101.09 mm
6.48 lbs.
3d fileDWGPDF
SA-40SA-40Details9.84 x 9.84 x 5.91 in.
249.94 x 249.94 x 150.11 mm
10.10 lbs.
3d fileDWGPDF
SA-41Details9.84 x 7.87 x 3.98 in.
249.94 x 199.90 x 101.09 mm
7.62 lbs.
3d fileDWGPDF
SA-43SA-43Details15.75 x 13.98 x 7.87 in.
400.05 x 355.09 x 199.90 mm
20.95 lbs.
3d fileDWGPDF
SA-46SA-46Details20.00 x 16.00 x 8.00 in.
508.00 x 406.40 x 203.20 mm
29.55 lbs.
3d fileDWGPDF
SA-49Details20.00 x 20.00 x 12.00 in.
508.00 x 508.00 x 304.80 mm
40.95 lbs.
3d fileDWGPDF
SA-51Details24.00 x 16.00 x 8.00 in.
609.60 x 406.40 x 203.20 mm
34.00 lbs.
3d fileDWGPDF
SA-52Details24.00 x 20.00 x 8.00 in.
609.60 x 508.00 x 203.20 mm
38.00 lbs.
3d fileDWGPDF
SA-54Details24.00 x 24.00 x 10.00 in.
609.60 x 609.60 x 254.00 mm
49.80 lbs.
3d fileDWGPDF
