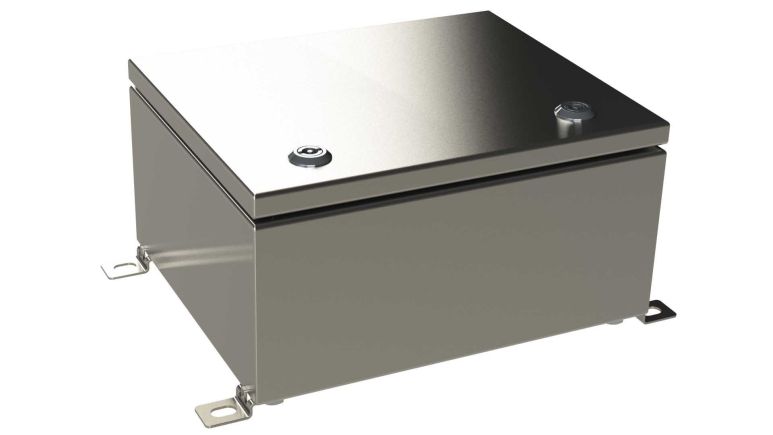

SA-31 SA Series NEMA Stainless Steel Enclosures

11.81 x 9.84 x 5.91 in. / 299.97 x 249.94 x 150.11 mm. / 9.00 lbs

  • 304 stainless steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Keyed quarter turn latch on hinged door
  • Bonding studs for grounding on door and base
  • Waterproof and corrosion-resistant
  • Internal panel, external mounting brackets, and hardware included
  • Cable gland and venting accessories are available here
  • This item is non-returnable

3D Models

2D Drawings

Material Specifications

    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4$212.25
    5 to 9$199.52
    10 to 24$189.54
    25 to 49$168.69
    50 to 99$165.32
