CG1 Cable Glands
External Dimensions 1.08 x 0.83 x 0.83 in
In stock
Color
Unit Price $2.13
Part
CG1 Cable Glands
Increase Down Increase Up
Product Overview

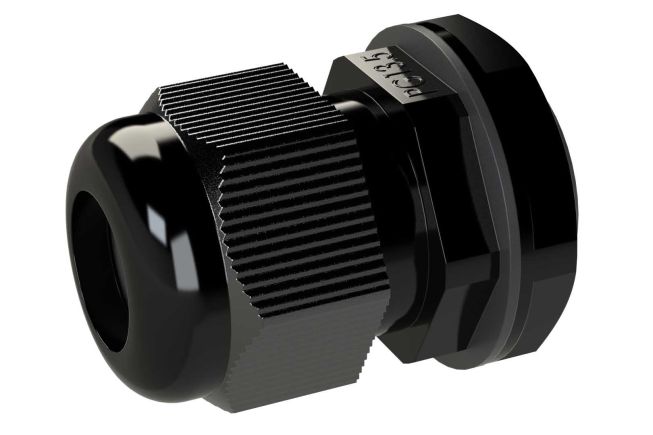

CG1 Cable glands are essential for maintaining NEMA 4X/IP66 rating when cables enter or exit the enclosure, with available mounting threads including PG-7, PG-9, PG-11, PG-13.5, PG-16, PG-21, or PG-29. These glands can accommodate cable diameters ranging from 0.118” to 0.945”, with assembly components including a black nylon body, hex nut, cable nut, gasket, and seal. The nylon material is suitable for a suggested service temperature of -40°F to 212°F. It's important to note that enclosure wall thicknesses may vary, and compatibility with all cable gland sizes may require modifications.
Specifications for
CG1 Cable Glands
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
