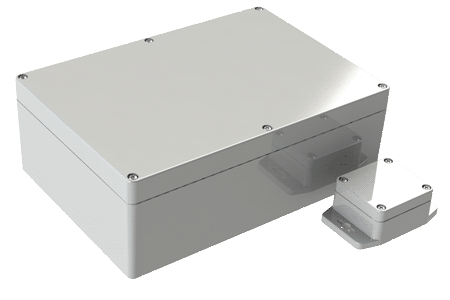

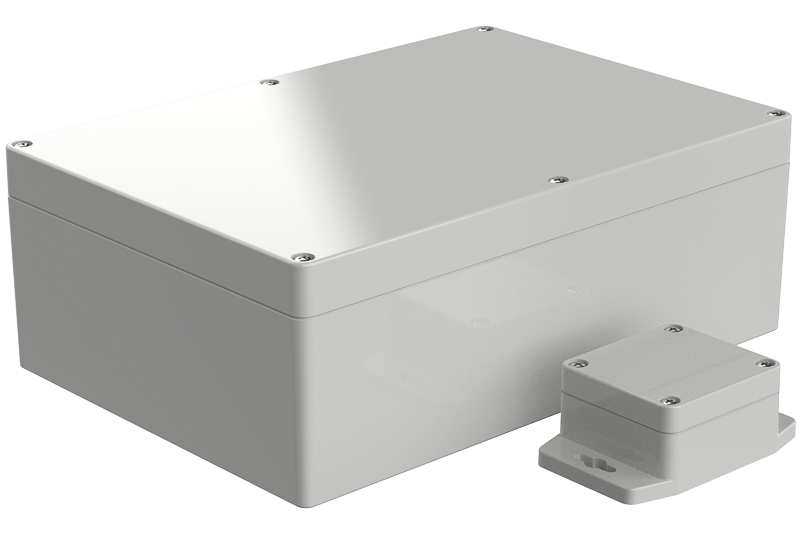

WP Series Polycarbonate NEMA Enclosures

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
WP-20WP-20Details2.28 x 2.52 x 1.38 in.
57.91 x 64.01 x 35.05 mm
0.16 lbs.
3d fileDWGPDF
WP-20FWP-20FDetails2.28 x 2.52 x 1.38 in.
57.91 x 64.01 x 35.05 mm
0.16 lbs.
3d fileDWGPDF
WP-21WP-21Details4.53 x 2.56 x 1.57 in.
115.06 x 65.02 x 39.88 mm
0.25 lbs.
3d fileDWGPDF
WP-21FWP-21FDetails4.53 x 2.56 x 1.57 in.
115.06 x 65.02 x 39.88 mm
0.25 lbs.
3d fileDWGPDF
WP-22WP-22Details4.53 x 2.56 x 2.17 in.
115.06 x 65.02 x 55.12 mm
0.31 lbs.
3d fileDWGPDF
WP-22FWP-22FDetails4.53 x 2.56 x 2.17 in.
115.06 x 65.02 x 55.12 mm
0.31 lbs.
3d fileDWGPDF
WP-23WP-23Details4.53 x 3.54 x 2.17 in.
115.06 x 89.92 x 55.12 mm
0.34 lbs.
3d fileDWGPDF
WP-23F WP-23FDetails4.53 x 3.54 x 2.17 in.
115.06 x 89.92 x 55.12 mm
0.34 lbs.
3d fileDWGPDF
WP-24WP-24Details6.73 x 4.76 x 2.17 in.
170.94 x 120.90 x 55.12 mm
0.63 lbs.
3d fileDWGPDF
WP-24FWP-24FDetails6.73 x 4.76 x 2.17 in.
170.94 x 120.90 x 55.12 mm
0.69 lbs.
3d fileDWGPDF
WP-25WP-25Details8.74 x 5.75 x 2.17 in.
222.00 x 146.05 x 55.12 mm
0.97 lbs.
3d fileDWGPDF
WP-25F WP-25FDetails8.74 x 5.75 x 2.17 in.
222.00 x 146.05 x 55.12 mm
0.97 lbs.
3d fileDWGPDF
WP-27WP-27Details6.73 x 4.76 x 3.15 in.
170.94 x 120.90 x 80.01 mm
0.81 lbs.
3d fileDWGPDF
WP-27FWP-27FDetails6.73 x 4.76 x 3.15 in.
170.94 x 120.90 x 80.01 mm
0.81 lbs.
3d fileDWGPDF
WP-28Details4.53 x 3.54 x 3.15 in.
115.06 x 89.92 x 80.01 mm
0.40 lbs.
3d fileDWGPDF
WP-28FDetails4.53 x 3.54 x 3.15 in.
115.06 x 89.92 x 80.01 mm
0.40 lbs.
3d fileDWGPDF
WP-31WP-31Details3.23 x 3.15 x 2.17 in.
82.04 x 80.01 x 55.12 mm
0.27 lbs.
3d fileDWGPDF
WP-31FWP-31FDetails3.23 x 3.15 x 2.17 in.
82.04 x 80.01 x 55.12 mm
0.27 lbs.
3d fileDWGPDF
WP-33WP-33Details6.30 x 3.15 x 3.35 in.
160.02 x 80.01 x 85.09 mm
0.61 lbs.
3d fileDWGPDF
WP-33F WP-33FDetails6.30 x 3.15 x 3.35 in.
160.02 x 80.01 x 85.09 mm
0.61 lbs.
3d fileDWGPDF
WP-34WP-34Details7.87 x 4.72 x 2.95 in.
199.90 x 119.89 x 74.93 mm
0.90 lbs.
3d fileDWGPDF
WP-35WP-35Details10.43 x 7.28 x 3.74 in.
264.92 x 184.91 x 95.00 mm
1.75 lbs.
3d fileDWGPDF
WP-36WP-36Details4.72 x 4.72 x 2.36 in.
119.89 x 119.89 x 59.94 mm
0.00 lbs.
3d fileDWGPDF
WP-36FWP-36FDetails4.72 x 4.72 x 2.36 in.
119.89 x 119.89 x 59.94 mm
0.48 lbs.
3d fileDWGPDF
WP-37 WP-37Details4.72 x 4.72 x 3.53 in.
119.89 x 119.89 x 89.66 mm
0.61 lbs.
3d fileDWGPDF
WP-37F WP-37FDetails4.72 x 4.72 x 3.53 in.
119.89 x 119.89 x 89.66 mm
0.61 lbs.
3d fileDWGPDF
WP-39WP-39Details6.30 x 6.30 x 3.52 in.
160.02 x 160.02 x 89.41 mm
0.85 lbs.
3d fileDWGPDF
WP-40WP-40Details9.45 x 6.30 x 3.60 in.
240.03 x 160.02 x 91.44 mm
1.38 lbs.
3d fileDWGPDF
WP-41Details9.45 x 6.30 x 4.72 in.
240.03 x 160.02 x 119.89 mm
1.60 lbs.
3d fileDWGPDF
WP-42WP-42Details11.81 x 9.05 x 3.40 in.
299.97 x 229.87 x 86.36 mm
1.94 lbs.
3d fileDWGPDF
WP-44WP-44Details14.12 x 7.84 x 5.96 in.
358.65 x 199.14 x 151.38 mm
3.17 lbs.
3d fileDWGPDF
