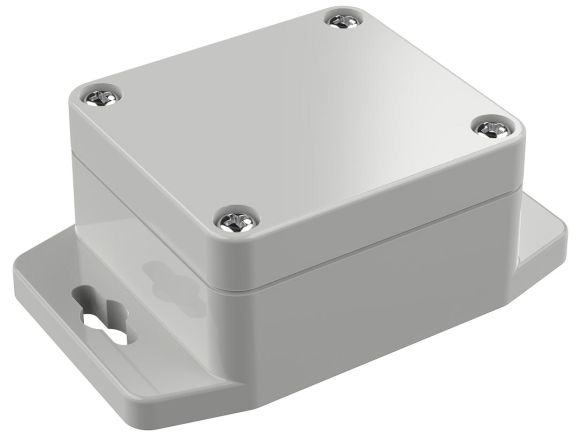

WP-20F Polycarbonate NEMA Enclosure

Flanged polycarbonate enclosure rated for outdoor use

Part
WP-20F*15
External Dimensions 2.28 x 2.52 x 1.38 in
In stock
Color Gray
QtyPrice / Unit
1 - 9 $9.36
10 - 49 $8.05
50 - 99 $7.17
100 - 249 $6.45
250 - 499 $6.13
More
Part
WP-20F*15
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The WP-20F electronic enclosure is constructed from gray impact-resistant polycarbonate, it comes standard with molded on mounting flanges located at the base and a silicone rubber gasket in the cover for protection against harsh outdoor conditions. Secure your PCB easily utilizing the 2 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WP-20F*15
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
2.28 x 2.52 x 1.38 in
58 x 64 x 35 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
2.03 x 2.27 x 1.18 in
52 x 58 x 30 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.118 in
Weight 0.17 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base Polycarbonate
Cover Polycarbonate
Gasket Silicone
Assembly Screws Stainless steel
Application
Application Outdoor use
UV Resistant Yes
Waterproof Yes
General
Series
Color Gray
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, gasketed cover, and 4 screws
Screw Torque 8 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E194432
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP65
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model WP-20F STEP
2D Drawing DWG WP-20F DWG
2D Drawing PDF WP-20F PDF
Other Files WP-20F Printing Template
Material Specs
WC & WP Series Material Specs Polycarbonate Specs

Accessory Guide
