Part
SCREWS-MBR-100
External Dimensions 0.32 x 0.19 x 0.19 in
In stock
Color Metallic
QtyPrice / Unit
1 - 249 $4.22
250 - 499 $3.01
500+ $2.71
Part
SCREWS-MBR-100
Increase Down Increase Up
Product Overview

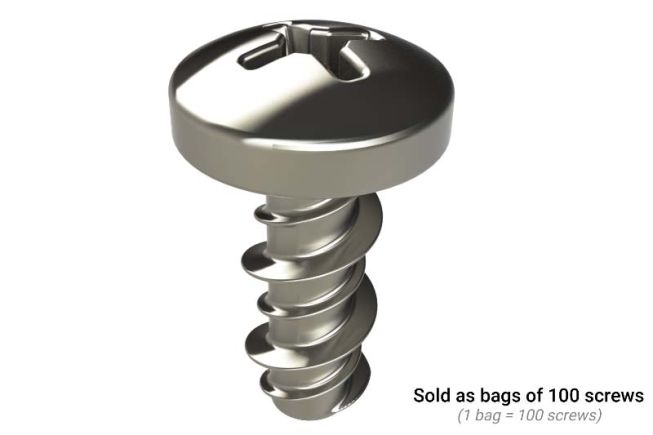

Sold in bags of 100 screws (1 bag = 100 screws), these mounting boss screws are 4-24 x 1/4 inch thread forming screws, suitable for standard PCB mounting bosses. Constructed with steel and a zinc-clear chromate finish, these screws are RoHS compliant, providing durability and corrosion resistance for effective mounting solutions.
Specifications for
SCREWS-MBR-100
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
0.32 x 0.19 x 0.19 in
8 x 5 x 5 mm
Weight 0.07 lbs
Screw Size #4-24 x .25"
2d Drawing PDF Download 2D Drawing PDF
Material Details
Product Material Steel
General
Series
Color Metallic
Country of Origin Taiwan
Screw Type Thread forming
Screw Use Circuit board assembly
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. 1 bag contains 100 screws

Downloads

Models & Drawings
3D Model SCREWS-MBR-100 STEP
2D Drawing DWG SCREWS-MBR-100 DWG
2D Drawing PDF SCREWS-MBR-100 PDF
