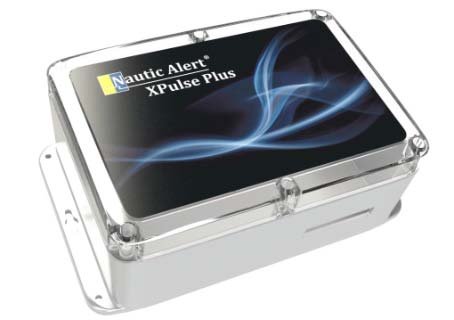

ML Series Outdoor NEMA 4X Enclosures

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
ML-22F*15Details2.63 x 2.63 x 1.63 in.
66.80 x 66.80 x 41.40 mm
0.30 lbs.
3d fileDWGPDF
ML-22F*1508Details2.63 x 2.63 x 1.63 in.
66.80 x 66.80 x 41.40 mm
0.30 lbs.
3d fileDWGPDF
ML-34F*15Details4.53 x 3.56 x 2.25 in.
115.06 x 90.42 x 57.15 mm
0.50 lbs.
3d fileDWGPDF
ML-34F*1508Details4.53 x 3.56 x 2.25 in.
115.06 x 90.42 x 57.15 mm
0.50 lbs.
3d fileDWGPDF
ML-44F*15ML-44F*15Details4.50 x 4.50 x 2.44 in.
114.30 x 114.30 x 61.98 mm
0.60 lbs.
3d fileDWGPDF
ML-44F*1508ML-44F*1508Details4.50 x 4.50 x 2.44 in.
114.30 x 114.30 x 61.98 mm
0.60 lbs.
3d fileDWGPDF
ML-45F*15Details5.50 x 4.13 x 2.44 in.
139.70 x 104.90 x 61.98 mm
0.60 lbs.
3d fileDWGPDF
ML-45F*1508Details5.50 x 4.13 x 2.44 in.
139.70 x 104.90 x 61.98 mm
0.60 lbs.
3d fileDWGPDF
ML-46F*15ML-46F*15Details6.13 x 4.63 x 2.44 in.
155.70 x 117.60 x 61.98 mm
0.70 lbs.
3d fileDWGPDF
ML-46F*1508ML-46F*1508Details6.13 x 4.63 x 2.44 in.
155.70 x 117.60 x 61.98 mm
0.70 lbs.
3d fileDWGPDF
ML-47F*15ML-47F*15Details7.63 x 4.63 x 3.09 in.
193.80 x 117.60 x 78.49 mm
0.80 lbs.
3d fileDWGPDF
ML-47F*1508ML-47F*1508Details7.63 x 4.63 x 3.09 in.
193.80 x 117.60 x 78.49 mm
0.80 lbs.
3d fileDWGPDF
ML-58F*15ML-58F*15Details8.75 x 5.25 x 3.30 in.
222.25 x 133.35 x 83.82 mm
1.14 lbs.
3d fileDWGPDF
ML-58F*1508ML-58F*1508Details8.75 x 5.25 x 3.30 in.
222.25 x 133.35 x 83.82 mm
1.14 lbs.
3d fileDWGPDF
ML-70*15ML-70F*15Details10.00 x 7.00 x 4.06 in.
254.00 x 177.80 x 103.12 mm
1.75 lbs.
3d fileDWGPDF
ML-70F*1508ML-70F*1508Details10.00 x 7.00 x 4.06 in.
254.00 x 177.80 x 103.12 mm
1.75 lbs.
3d fileDWGPDF
