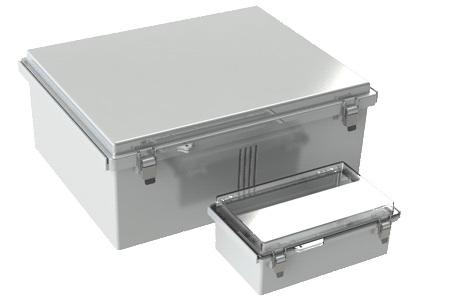

WQ Series NEMA Hinged Enclosures

WQ Series Junction Box Guide

Product ImagePart #Dimensions
(L x W x H) (in / mm)
Engineering Drawings
WQ-50Details10.24 x 6.30 x 3.94 in.
260.10 x 160.02 x 100.08 mm
1.50 lbs.
3d fileDWGPDF
WQ-57-02WQ-57Details11.02 x 7.48 x 5.51 in.
279.91 x 189.99 x 139.95 mm
2.25 lbs.
3d fileDWGPDF
WQ-64-02WQ-64Details14.96 x 11.02 x 5.12 in.
379.98 x 279.91 x 130.05 mm
3.49 lbs.
3d fileDWGPDF
WQ-73Details17.72 x 13.78 x 6.30 in.
450.09 x 350.01 x 160.02 mm
5.52 lbs.
3d fileDWGPDF
WQ-76-02WQ-76Details19.69 x 15.75 x 7.87 in.
500.13 x 400.05 x 199.90 mm
8.14 lbs.
3d fileDWGPDF
WQ-80Details24.80 x 20.87 x 10.04 in.
629.92 x 530.10 x 255.02 mm
14.88 lbs.
3d fileDWGPDF
