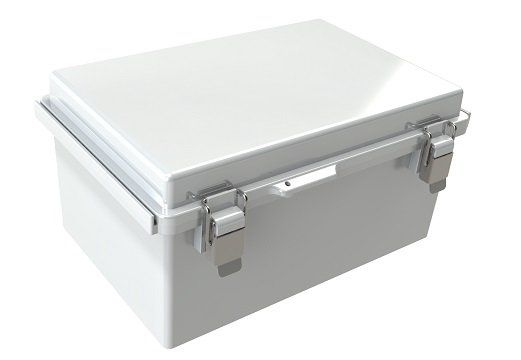

WQ-57 NEMA Hinged Enclosure

11.02 x 7.48 x 5.51 in / 279.91 x 189.99 x 139.95 mm
View Details
In stock
Unit Price $54.57
Part
WQ-57
Increase Down Increase Up
Customize It
  • Meets NEMA 4X / IP67 specifications
  • UL Listed to UL 508 (file no. E343339)
  • Stainless steel latches
  • Fiberglass reinforced polycarbonate base, polycarbonate cover
  • Continuous gasket
  • Designed for outdoor applications
  • PCB mounting boss screws included for bosses with brass inserts
RatingSpecification
Flame ratingUL94 V-0
NEMA Rating4X
IP RatingIP65, IP66, IP67
Color
Part #GrayGray with Clear Cover
WQ-57-02
WQ-57-03

Optional Accessories Include:

  • Internal mounting panel - WQ-57P
  • Flange kit for surface mounting - WQ-91
  • Pole mounting kit installed along width - PK-082
  • Pole mounting kit installed along length - PK-121
  • DIN Rail kit installed along width - DR-18
  • DIN Rail kit installed along length - DR-20
  • Internal PCB mounting boss screws (for plastic bosses only)- SCREWS-032-50
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-57 STEP
2D Drawing WQ-57 DWG
2D Drawing WQ-57 PDF
Material Spec WQ Material Specs
