Plastic Electronic Enclosure Play Video

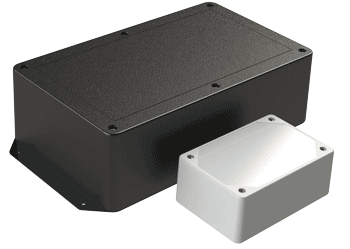

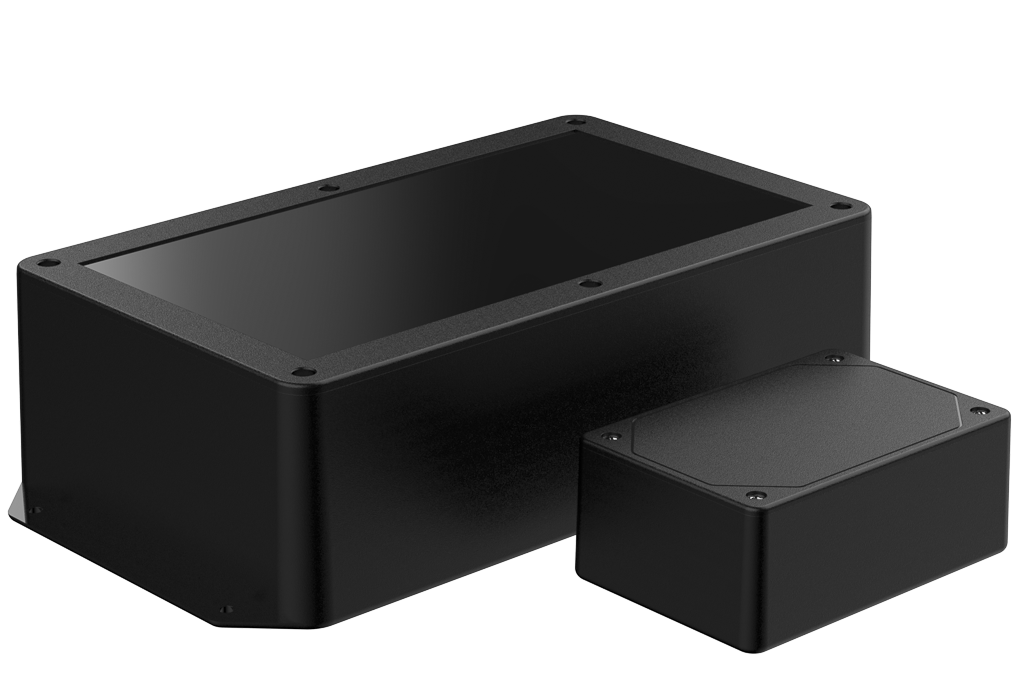

DC Series Heavy Duty Electronics Enclosures

Product Image Part # Dimensions
(L x W x H) (in / mm)
Engineering Drawings
DC-34F DC-34F Details 4.61 x 3.10 x 1.77 in.
117.09 x 78.74 x 44.96 mm
0.32 lbs.
3d file DWG PDF
DC-34P DC-34P Details 4.61 x 3.10 x 1.77 in.
117.09 x 78.74 x 44.96 mm
0.32 lbs.
3d file DWG PDF
DC-44F DC-44F Details 4.62 x 4.62 x 2.25 in.
117.35 x 117.35 x 57.15 mm
0.50 lbs.
3d file DWG PDF
DC-44P DC-44P Details 4.62 x 4.62 x 2.25 in.
117.35 x 117.35 x 57.15 mm
0.50 lbs.
3d file DWG PDF
DC-45F DC-45F Details 6.13 x 4.62 x 1.25 in.
155.70 x 117.35 x 31.75 mm
0.44 lbs.
3d file DWG PDF
DC-45P DC-45P Details 6.13 x 4.62 x 1.25 in.
155.70 x 117.35 x 31.75 mm
0.44 lbs.
3d file DWG PDF
DC-46F DC-46F Details 6.13 x 4.62 x 2.25 in.
155.70 x 117.35 x 57.15 mm
0.59 lbs.
3d file DWG PDF
DC-46P DC-46P Details 6.13 x 4.62 x 2.25 in.
155.70 x 117.35 x 57.15 mm
0.59 lbs.
3d file DWG PDF
DC-47F DC-47F Details 7.62 x 4.62 x 2.25 in.
193.55 x 117.35 x 57.15 mm
0.74 lbs.
3d file DWG PDF
DC-47P DC-47P Details 7.62 x 4.62 x 2.25 in.
193.55 x 117.35 x 57.15 mm
0.74 lbs.
3d file DWG PDF
DC-57F Details 8.25 x 5.00 x 1.50 in.
209.55 x 127.00 x 38.10 mm
0.70 lbs.
3d file DWG PDF
DC-57F Gasketed Details 8.25 x 5.00 x 1.50 in.
209.55 x 127.00 x 38.10 mm
0.70 lbs.
3d file DWG PDF
DC-57P Details 8.25 x 5.00 x 1.50 in.
209.55 x 127.00 x 38.10 mm
0.70 lbs.
3d file DWG PDF
DC-57P Gasketed Details 8.25 x 5.00 x 1.50 in.
209.55 x 127.00 x 38.10 mm
0.70 lbs.
3d file DWG PDF
DC-58F DC-58F Details 8.25 x 5.00 x 3.00 in.
209.55 x 127.00 x 76.20 mm
1.12 lbs.
3d file DWG PDF
DC-58F with gasket DC-58F Gasketed Details 8.25 x 5.00 x 3.00 in.
209.55 x 127.00 x 76.20 mm
1.12 lbs.
3d file DWG PDF
DC-58P DC-58P Details 8.25 x 5.00 x 3.00 in.
209.55 x 127.00 x 76.20 mm
1.12 lbs.
3d file DWG PDF
DC-58P with gasket DC-58P Gasketed Details 8.25 x 5.00 x 3.00 in.
209.55 x 127.00 x 76.20 mm
1.12 lbs.
3d file DWG PDF
DC-59F Details 8.25 x 5.00 x 2.80 in.
209.55 x 127.00 x 71.12 mm
1.11 lbs.
3d file DWG PDF
DC-59F Gasketed Details 8.25 x 5.00 x 2.80 in.
209.55 x 127.00 x 71.12 mm
1.11 lbs.
3d file DWG PDF
DC-59P Details 8.25 x 5.00 x 2.80 in.
209.55 x 127.00 x 71.12 mm
1.11 lbs.
3d file DWG PDF
DC-59P Gasketed Details 8.25 x 5.00 x 2.80 in.
209.55 x 127.00 x 71.12 mm
1.11 lbs.
3d file DWG PDF
DC-85F DC-85F Details 8.25 x 5.00 x 4.33 in.
209.55 x 127.00 x 109.98 mm
1.26 lbs.
3d file DWG PDF
DC-85F with gasket DC-85F Gasketed Details 8.25 x 5.00 x 4.33 in.
209.55 x 127.00 x 109.98 mm
1.26 lbs.
3d file DWG PDF
DC-85P DC-85P Details 8.25 x 5.00 x 4.33 in.
209.55 x 127.00 x 109.98 mm
1.26 lbs.
3d file DWG PDF
DC-85P with Gasket DC-85P Gasketed Details 8.25 x 5.00 x 4.33 in.
209.55 x 127.00 x 109.98 mm
1.26 lbs.
3d file DWG PDF
DC-96F DC-96F Details 10.00 x 6.00 x 3.00 in.
254.00 x 152.40 x 76.20 mm
1.37 lbs.
3d file DWG PDF
DC-96P DC-96P Details 10.00 x 6.00 x 3.00 in.
254.00 x 152.40 x 76.20 mm
1.37 lbs.
3d file DWG PDF
