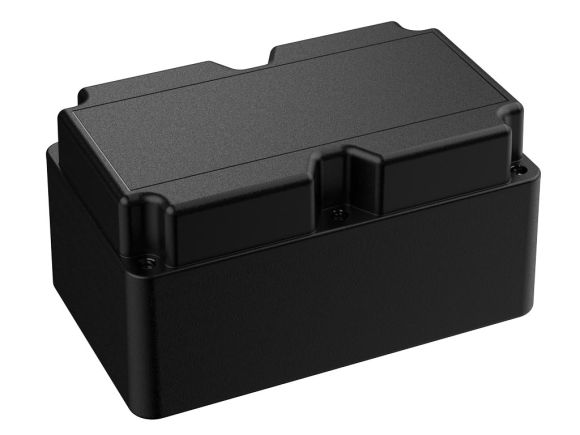

DC-85P Gasketed DC Series Heavy-Duty Electronics Enclosures

8.25 x 5.00 x 4.33 in. / 209.55 x 127.00 x 109.98 mm. / 1.26 lbs

DC-85P with Gasket

Rubber gasket for dust and moisture resistance
Cover screws into brass inserts for cover on/cover off applications
Optional recessed/smooth area on cover for graphic overlays or membrane keypads
Optional flush/textured cover for consistent surface
8 PCB mounting bosses in base
Assembly includes base, cover, and 6 screws
Internal mounting panel DC-58K available

3D Models

DC-85P GASKET STEP.zip

2D Drawings

Material Specifications

ABS Material Spec

			STANDARD COLORS			COVER STYLES
Part Number	Material	Flame Rating	Black	Gray		Flush / Textured	Recessed / Smooth
DC-85PMMTG	Flame Retardant ABS	UL94-5VA
DC-85PMMRG	Flame Retardant ABS	UL94-5VA

ï»¿

Options & Pricing

Quantity

PCB Mounting Boss Screws
($3.82 per bag of 100)No. of Bags
