Adhesive PCB Mounts (bag of 20)
Product Overview

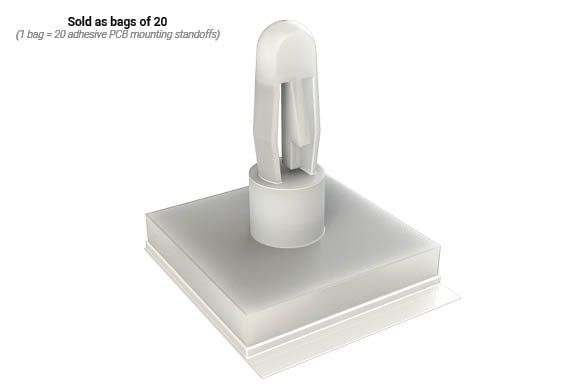

The MB-01-20 1/4" individual adhesive PCB mounting bosses, compatible with all series of enclosures, can accommodate a 1/8" diameter hole in a 1/16" thick PCB. These UL94V-0 rated mounting bosses are sold in packs of 20 and provide secure and reliable PCB mounting solutions.
Specifications for
MB-01-20
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 0.5 x 0.5 x 0.2 in 13 x 13 x 6 mm |
| Weight | 0.03 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Product Material | Nylon 6/6 |
Inventory for
MB-01-20
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 to 4 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | MB-01-20 STEP |
| 2D Drawing DWG | MB-01-20 DWG |
| 2D Drawing PDF | MB-01-20 PDF |
