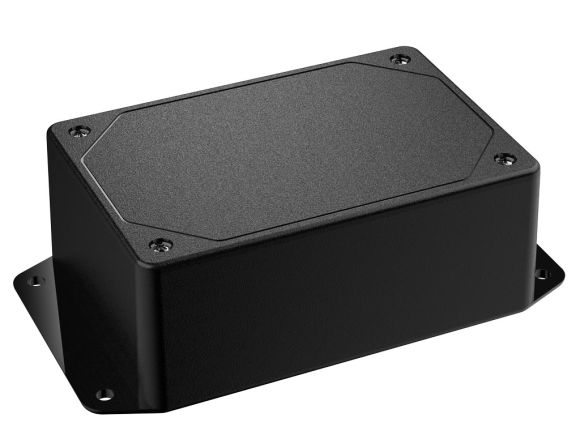

DC-34F DC Series Heavy-Duty Electronics Enclosures

4.61 x 3.10 x 1.77 in. / 117.09 x 78.74 x 44.96 mm. / 0.32 lbs

  • Cover screws into brass inserts for cover on/cover off applications
  • Optional recessed/smooth area on cover for graphic overlays or membrane keypads
  • Optional flush/textured cover for consistent surface
  • 4 PCB mounting bosses in base
  • Surface-mounting flanges
  • Assembly includes base, cover, and 4 screws

Material Specifications

   COLORSCOVER STYLES
Part Number Material Flame Rating  Black Gray Flush / Textured Recessed / Smooth
DC-34FMBYT Flame Retardant ABS UL94-5VA Yes    Yes
DC-34FMBYR Flame Retardant ABS UL94V-0 Yes      Yes
DC-34FMBYT*01   Flame Retardant ABS   UL94-5VA     Yes   Yes
DC-34FMBYR*01 Flame Retardant ABS   UL94V-0   Yes   Yes






Options & Pricing
Application
Category
Cover Style
Color
Flanges
PCB Mounting Bosses
Max PCB
Material
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$6.65
10 to 49$5.80
50 to 99$5.03
100 to 249$4.53
250 to 499$4.33
500 to 999$3.90
1000+$3.62
