Product Overview

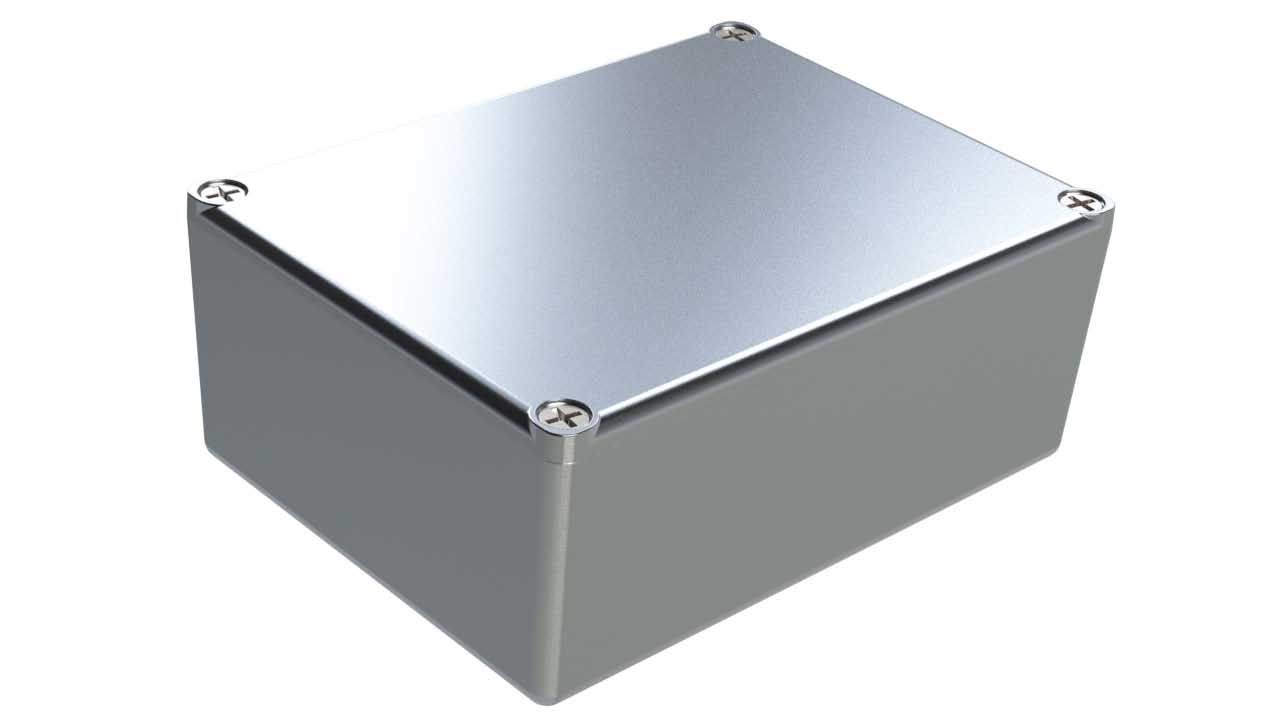

Constructed from ADC-12 alloy diecast aluminum, the AL-71P provides a natural aluminum finish and inherent EMI/RFI attenuation to enhance functionality for indoor electronic applications where protection from outside interference is important. Four thread forming cover screws are included, making assembly of the base and cover simple for desktop, or potting box applications.
Specifications for
AL-71P-01
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.33 x 3.25 x 1.75 in |
| External Dimensions (mm) | 110 x 83 x 44 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.02 x 2.94 x 1.59 in |
| Internal Dimensions (mm) | 102 x 75 x 40 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 0.43 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Aluminum |
| Cover | Aluminum |
| Assembly Screws | Steel |
Application
| Application | Indoor use |
| Waterproof | No |
Downloads
Models & Drawings
| 3D Model | AL-71P STEP |
| 2D Drawing DWG | AL-71P DWG |
| 2D Drawing PDF | AL-71P PDF |
| Other Files | AL-71P Printing Template |
Material Specs
| Aluminum Material Specs | Aluminum Specs |
Accessory Guide
Optional Accessories
| Adhesive PCB Mounting Standoffs | MB-01-20 |
