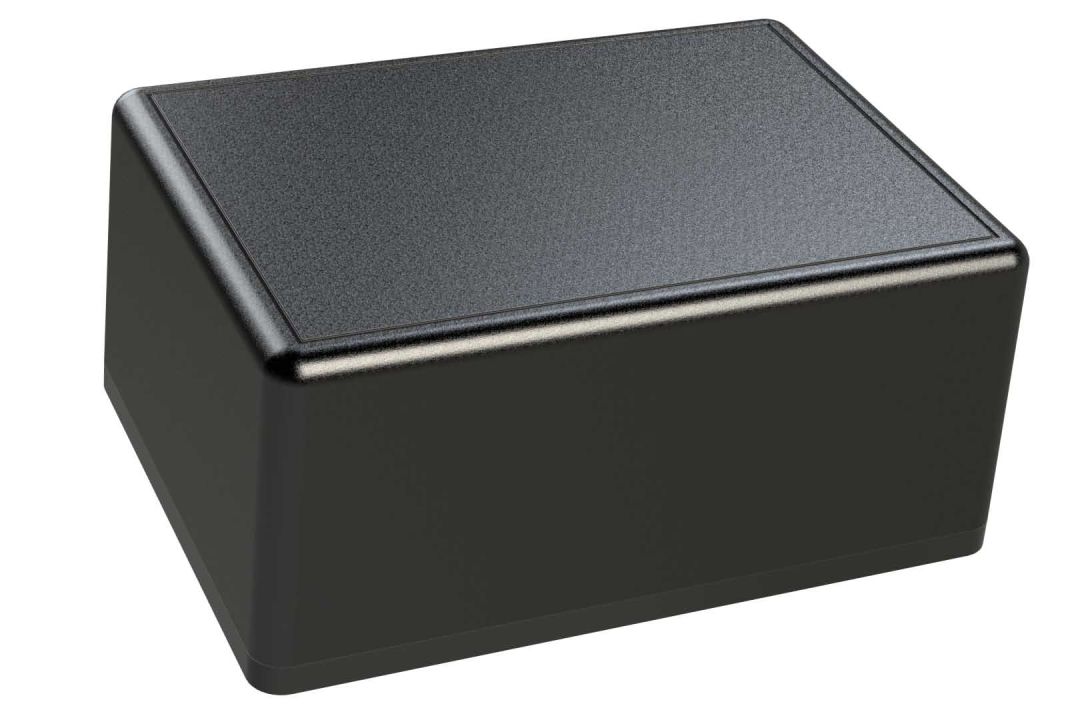

TS-3420P Plastic Electronics Enclosure

Electronics enclosure with extra deep base for indoor applications

Part
TS-3420P Pnt
External Dimensions 4.38 x 3.13 x 2.00 in
In stock
Color
Unit Price $5.07
Part
TS-3420P Pnt
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The TS-3420P extra-deep electronic case is molded from black flame-retardant ABS plastic with 4 optional mounting bosses in the cover. Each enclosure comes with a base, cover, and 4 enclosure screws for simple assembly.
Specifications for
TS-3420P Pnt
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
