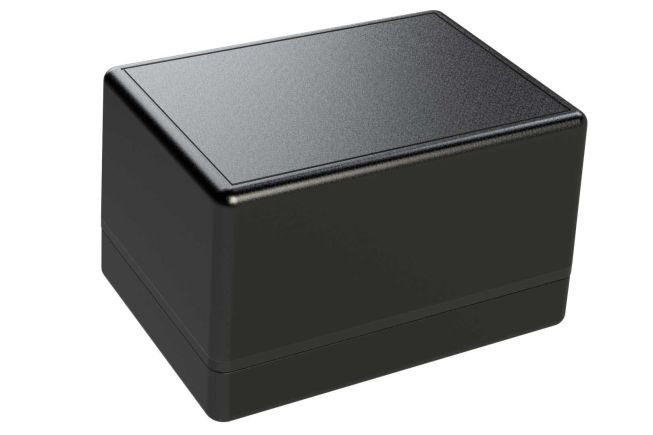

ID-3420P Plastic Electronics Enclosure
ABS housing for electronics with ample space in extra-deep cover
Product Overview
The ID-3420P is crafted from black flame retardant ABS plastic, and features 4 PCB mounting bosses in the base. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for various indoor electronics applications.
Specifications for
ID-3420PMB
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.38 x 3.13 x 2.70 in 111 x 80 x 69 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 4.20 x 2.95 x 2.50 in 107 x 75 x 64 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.11 in |
| Weight | 0.30 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | None |
| Internal Mounting Option | PCB mounting bosses in base |
Downloads
Models & Drawings
| 3D Model | ID-3420P STEP |
| 2D Drawing DWG | ID-3420P DWG |
| 2D Drawing PDF | ID-3420P PDF |
| Other Files | ID-3420P Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
