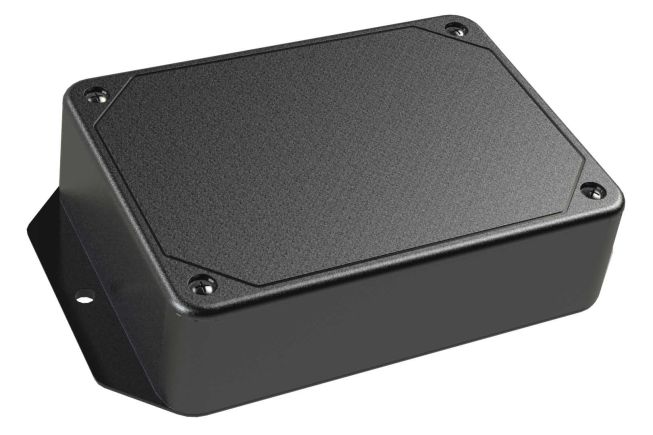

LP-51F LP Series ABS Plastic Enclosure for Electronics

4.55 x 3.29 x 1.25 in. / 115.57 x 83.57 x 31.75 mm. / 0.25 lbs

LP-51FMBT

Optional recessed/smooth area on cover for graphic overlays or membrane keypads
Optional flush/textured cover for consistent surface
Cover screws directly into base
4 optional PCB mounting bosses in base
Surface-mounting flanges
Assembly includes base, cover, and 4 enclosure screws

3D Models

LP-51F STEP.zip

2D Drawings

Material Specifications

ABS Material Spec

			COLORS			COVER STYLES		PCB MOUNTING BOSSES
Part Number	Material	Flame Rating	Black	Bone	Gray	Flush / Textured	Recessed / Smooth	Included
LP-51FMBT	ABS	UL94-5VA
LP-51FMBR	ABS	UL94V-0
LP-51FXXT	ABS	UL94-5VA
LP-51FXXR	ABS	UL94V-0

Options & Pricing

Quantity	Price
1 to 9	$3.90
10 to 49	$3.65
50 to 99	$3.51
100 to 249	$3.32
250 to 499	$3.14
500 to 999	$2.95
1000+	$2.61

Quantity

PCB Mounting Boss Screws
($3.82 per bag of 100)No. of Bags
