AN-04F Diecast Aluminum NEMA Enclosure

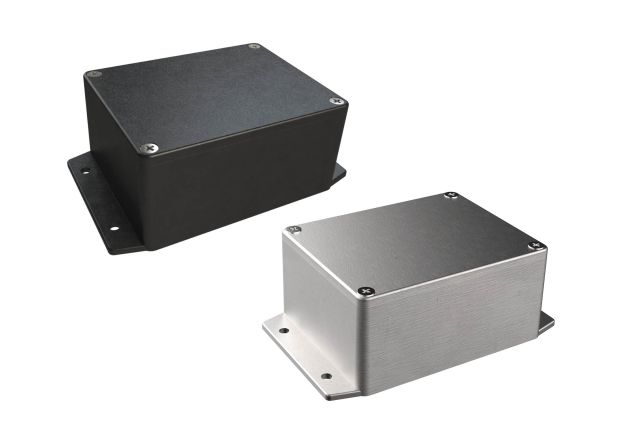

Aluminum electronic case with surface mounting flanges
Product Overview
The AN-04F ADC-12 alloy diecast aluminum enclosure is ideal for electronics in outdoor applications. Built to withstand harsh environments, the AN-04F is rated up to NEMA 6P (IP68 equivalent) and provides an inherent level of EMI/RFI attenuation to protect against harmful interference. Molded on flanges help to simplify surface mounting, while options of a natural brushed aluminum or black powder-coated finish let you choose the right look for your project. Both color choices include silver stainless steel screws for assembly. Secure your PCB with the 4 mounting bosses available in the base, or opt for the internal mounting panel (sold separately).
Specifications for
AN-04F
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | |
| DIN Rail Length (mm) | |
| Weight | |
| Screw Size | |
| Fan Size | |
| Fits Hole Size | |
| Mounting Thread | |
| Cable Diameter (in) | |
| Clearance Hole Diameter (in) | |
| Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied. | |
| Metric Knockouts | |
| 2d Drawing PDF |
Material Details
Application
| Indoor/Outdoor Use | |
| UV Resistant | |
| Waterproof | |
| EMI/RFI Attenuation |
Inventory for
AN-04F
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | |
| Ready To Ship in 2-3 Days |
| Ready To Ship in One Week | |
| Ready To Ship in 2 Weeks | |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | |
| Returnable |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | AN-04F STEP |
| 2D Drawing DWG | AN-04F DWG |
| 2D Drawing PDF | AN-04F PDF |
| Other Files | AN-04F Printing Template |
Material Specs
| Aluminum Material Specs | Aluminum Specs |
Guides
| Pole Mount Assembly Guide | AN Series Pole Mount Assembly |
Certifications & Testing
| USMCA Certificate of Origin | USMCA AL/AN/EX Series |
Accessory Guide
Optional Accessories
| Internal Mounting Panel | AN-04K |
| PCB Mounting Boss Screws | SCREWS-050-100 |
| Pole Mounting Kit (Installed Along Width) | PK-066A |
| Pole Mounting Kit (Installed Along Length) | PK-085A |
Part Numbers
| Color | ||
|---|---|---|
| Part # | Natural | Black |
| AN-04F-01 | ||
| AN-04F-02 | ||
Frequently Bought Together
CG3 Gray Cable GlandsAs low as $1.12
New PK-066A Pole Mount KitAs low as $24.25
AN Series PCB Screws (bag of 100 screws)As low as $6.88
CG1 Black Cable GlandsAs low as $1.40
AN-04K Panel for AN-04 EnclosuresAs low as $5.92
