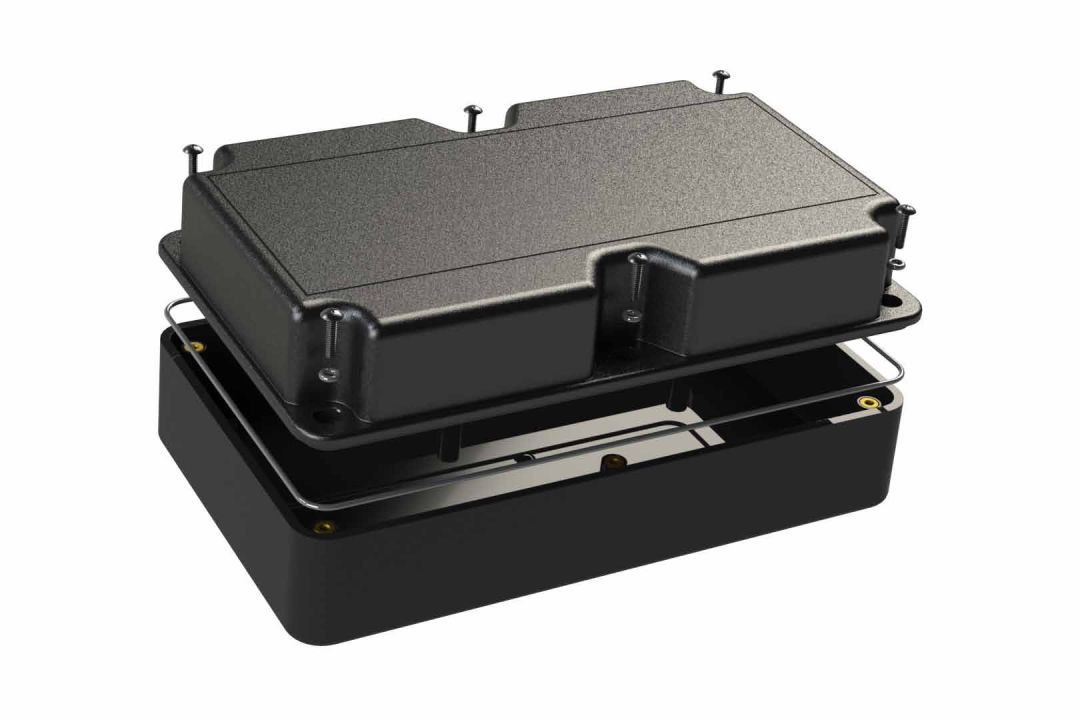

DC-59P Gasketed DC Series Heavy Duty Electronics Enclosures

8.25 x 5.00 x 2.80 in. / 209.55 x 127.00 x 71.12 mm. / 1.11 lbs

  • Rubber gasket for dust and water resistance
  • Cover screws into brass inserts for cover on/cover off applications
  • 8 mounting bosses in base, 6 mounting bosses in cover is standard

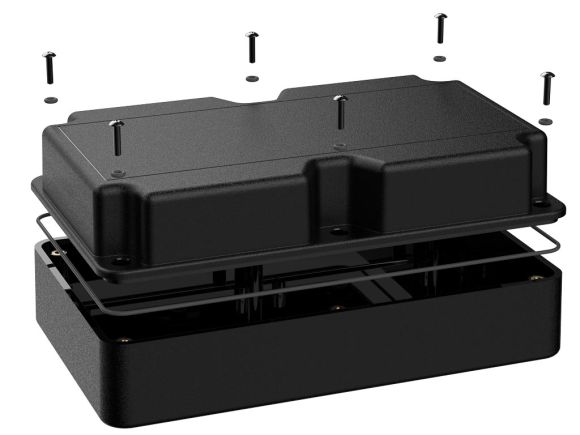

  • Assembly includes base, cover, cover gasket, 6 o-rings, and 6 enclosure screws
  • Optional mounting panel DC-58K available

Material Specifications

   COLORCOVER STYLES
Part Number Material Flame Rating  Black Flush / Textured Recessed / Smooth
DC-59PMMTG Flame Retardant ABS UL94-5VA Yes Yes
DC-59PMMRG Flame Retardant ABS UL94-5VA Yes   Yes






Options & Pricing
Application
Category
Cover Style
Color
Flanges
PCB Mounting Bosses
Material
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$13.68
10 to 49$12.52
50 to 99$11.42
100 to 249$10.19
250 to 499 $9.64
500 to 999$8.86
1000+$8.22
