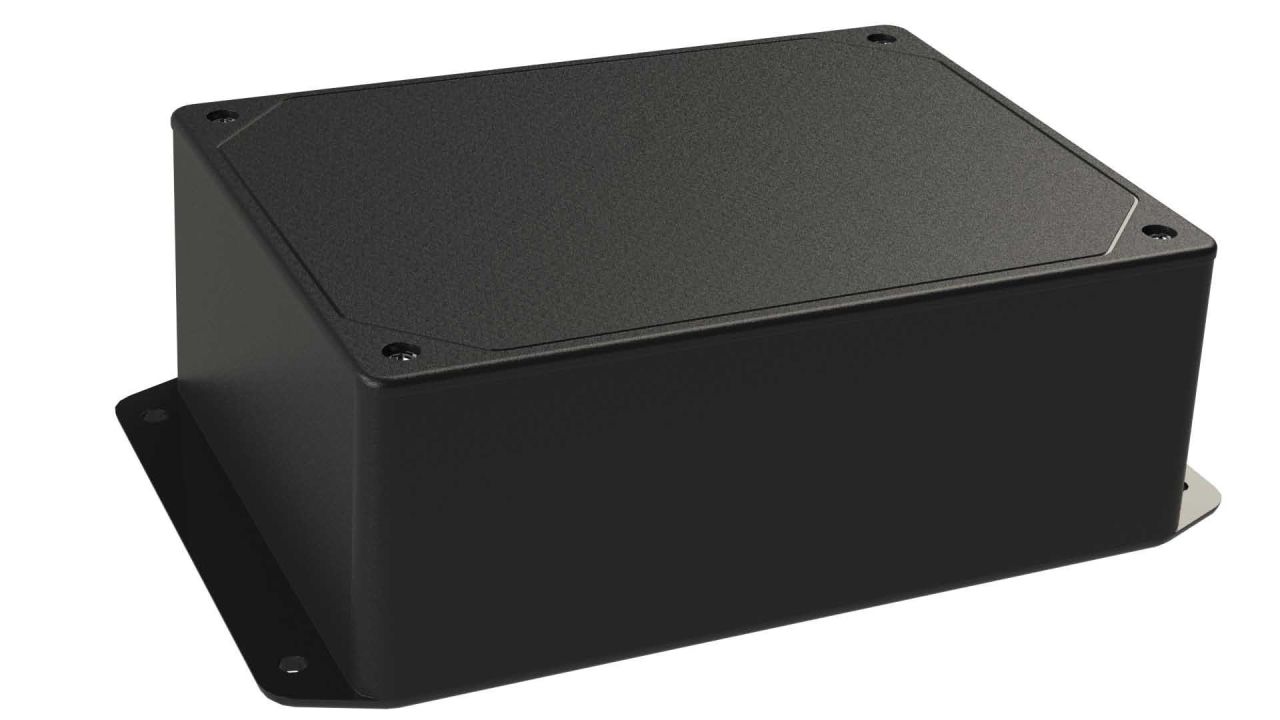

DC-46F DC Series Heavy Duty Electronics Enclosures

6.13 x 4.62 x 2.25 in. / 155.70 x 117.35 x 57.15 mm. / 0.59 lbs

  • Cover screws into brass inserts for cover on/cover off applications
  • Optional recessed/smooth area on cover for graphic overlays or membrane keypads
  • Optional flush/textured cover for consistent surface
  • 4 PCB mounting bosses in base
  • Surface-mounting flanges
  • Assembly includes base, cover, and 4 screws
  • Internal mounting panel DC-46K available

Material Specifications

   STANDARD COLORSCOVER STYLES
Part Number Material Flame Rating  Black Gray Flush / Textured Recessed / Smooth
DC-46FMBYT Flame Retardant ABS UL94-5VA Yes Yes   Yes
DC-46FMBYR Flame Retardant ABS UL94V-0 Yes Yes     Yes






Options & Pricing
Application
Category
Cover Style
Color
Flanges
PCB Mounting Bosses
Max PCB
Material
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$8.09
10 to 49$7.00
50 to 99$6.12
100 to 249$5.47
250 to 499$5.17
500 to 999$4.66
1000+$4.33
