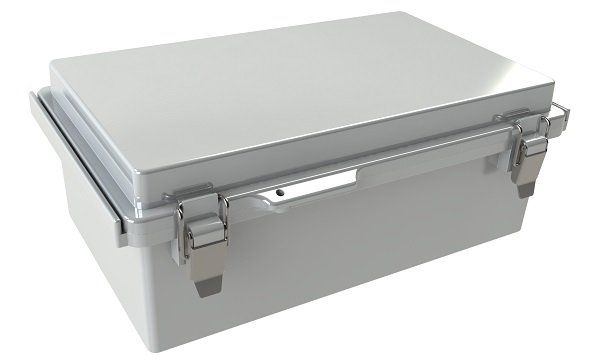

WQ-50 NEMA Hinged Enclosure

10.24 x 6.30 x 3.94 in / 260 x 160 x 100 mm
View Details
In stock
Unit Price $46.67
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • UL & cUL Listed (file no. E194432)
  • NEMA 4X rated
  • Meets IP65 & IP66 specifications based on UL Listing
  • IP67 rated
  • Stainless steel latches
  • Fiberglass reinforced polycarbonate base, polycarbonate cover
  • Continuous gasket
  • Designed for outdoor applications
  • PCB mounting boss screws included for bosses with brass inserts
Flame ratingUL94 V-0
NEMA Rating4X
IP EquivalentIP65, IP66, IP67
Part #GrayGray with Clear Cover

Optional Accessories Include:

  • Internal mounting panel - WQ-50P
  • Flange kit for surface mounting - WQ-90
  • Pole mounting kit installed along width - PK-083
  • Pole mounting kit installed along length - PK-122
  • DIN Rail kit installed along width - DR-17
  • DIN Rail kit installed along length - DR-23
  • Internal PCB mounting boss screws (for plastic bosses only)- SCREWS-032-50
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-50 STEP
2D Drawing WQ-50 DWG
2D Drawing WQ-50 PDF
Material Spec WQ Material Specs
