WQ-81 Hinged Weatherproof Enclosure

Extra-large hinged housing for outdoor electrical applications

Part
WQ-81-02
External Dimensions 28.74 x 20.87 x 7.36 in
In stock
Color Gray
QtyPrice / Unit
1 - 4 $274.57
5 - 9 $260.84
10 - 24 $245.20
25 - 49 $235.39
50 - 99 $228.33
More
Part
WQ-81-02
Increase Down Increase Up
Product Overview

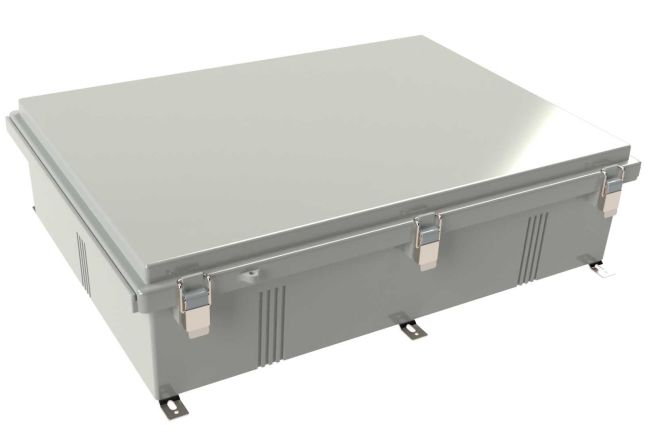

The WQ-81 hinged-style housing is constructed from gray fiberglass reinforced polycarbonate and includes feet for surface mounting, it's made complete with stainless steel latches, a small padlock hasp, and a continuous gasket in the cover for a watertight seal. Secure your PCB utilizing the 14 mounting bosses in the base, or use the mounting panel or DIN rail kit (sold separately). This part is not eligible for customization.

Specifications for
WQ-81-02
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
28.74 x 20.87 x 7.36 in
730 x 530 x 187 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
26.97 x 19.09 x 6.93 in
685 x 485 x 176 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.177 in
Weight 15.72 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base Fiberglass-reinforced polycarbonate
Cover Polycarbonate
Latch Stainless steel
Gasket Formed-in-place polyurethane
Mounting Feet Stainless steel
Application
Application Outdoor use
UV Resistant Yes
Waterproof Yes
General
Series
Color Gray
Country of Origin South Korea
Returnable No
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Gasketed enclosure, 6 mounting feet and 12 screws
External Mounting Style Surface mounting kit (included)
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E343339
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
4X
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP67
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model WQ-81 STEP
2D Drawing DWG WQ-81 DWG
2D Drawing PDF WQ-81 PDF
Material Specs
WQ Series Material Specs Material Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel WQ-81P
DIN Rail Kit (Installed Along Length) DR-65
DIN Rail Kit (Installed Along Width) DR-45
Pole Mounting Kit (Installed Along Width) PK-202
Cable Management & Venting Accessories Cable Glands & Vents
Mounting Boss Screws
PCB Mounting Boss Screws (bosses without brass inserts) SCREWS-032-50

Compare with Similar Items

Customer Rating
External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Country of Origin
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Color
Material
Application
NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
Mounting Style
Internal Mounting Option
Features
28.74 x 20.87 x 7.36 in
South Korea
2-16 weeks
Gray
Polycarbonate
Outdoor use
4X
IP65, IP66, IP67
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Hinged Cover
  • Area for padlock
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
32.68 x 24.80 x 7.36 in
South Korea
2-16 weeks
Gray
Polycarbonate
Outdoor use
4X
IP65, IP66, IP67
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Hinged Cover
  • Area for padlock
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
24.80 x 20.87 x 10.04 in
South Korea
2-16 weeks
Gray
Polycarbonate
Outdoor use
4X
IP65, IP66, IP67
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Hinged Cover
  • Area for padlock
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
24.00 x 24.00 x 10.00 in
China
2-16 weeks
Gray
Steel
Outdoor use
1, 2, 4, 4X, 12
IP65, IP66
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (included)
  • Hinged Cover
  • Degree of inherent EMI/RFI protection
  • Bonding studs for grounding on door and base
  • Keyed quarter turn latch on hinged door
  • Pole mount kit available (sold separately)
