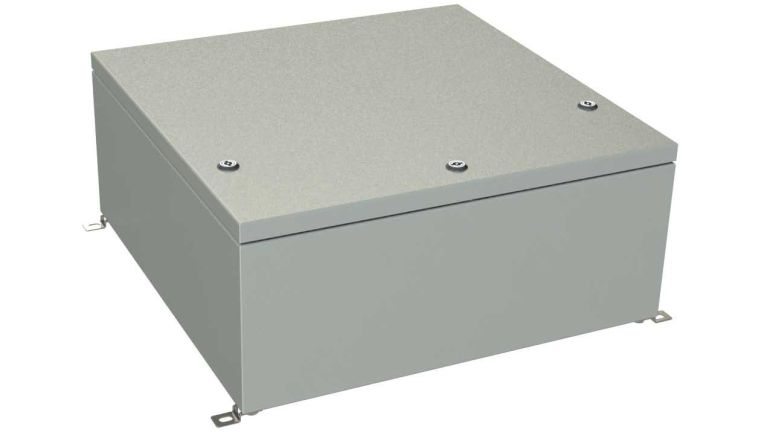

SB-54 NEMA Steel Enclosure
Extra-large steel enclosure for electrical applications
Product Overview
The SB-54 gasketed enclosure is crafted from 16 gauge steel that is powder coated with a gray finish to provide corrosion resistance. Rated up to NEMA 4X, the enclosure meets the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.
Specifications for
SB-54-02
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 24.00 x 24.00 x 10.00 in 610 x 610 x 254 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 23.67 x 23.67 x 10.19 in 601 x 601 x 259 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.06 in |
| Weight | 48.01 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Steel Gauge | 16 |
| Base | Carbon steel |
| Cover | Carbon steel |
| Gasket | Formed-in-place polyurethane |
Application
| Application | Outdoor use |
| Waterproof | Yes |
Downloads
Models & Drawings
| 3D Model | SB-54 STEP |
| 2D Drawing DWG | SB-54 DWG |
| 2D Drawing PDF | SB-54 PDF |
| Other Files | SB-54 Pole Mount Kit Assembly |
Accessory Guide
Optional Accessories
| Pole Mounting Kit (Installed Along Width) | PK-240 |
| Pole Mounting Kit (Installed Along Length) | PK-280 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
Spare Parts
| Spare Key for Latch | SB-KEY-01 |
