External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 17.72 x 1.38 x 0.30 in |
External Dimensions (mm) | 450 x 35 x 8 mm |

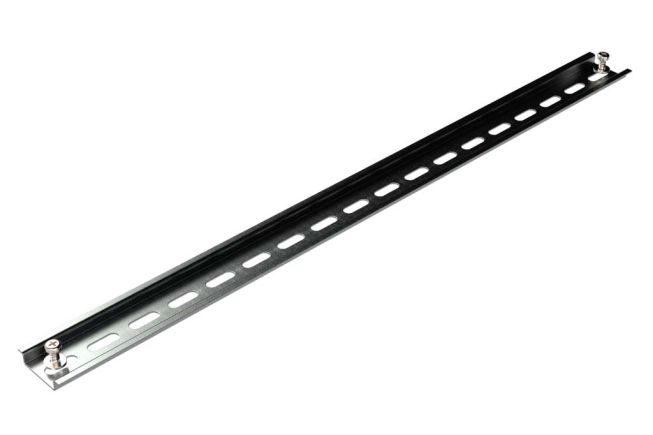

DIN Rail Length (mm) | 450 mm |
Weight | 0.31 lbs |
2d Drawing PDF | Download 2D Drawing PDF |
DIN Rail | Steel |
Washer | Stainless steel |
Assembly Screws | Steel |
3D Model | DR-45 STEP |
2D Drawing DWG | DR-xx DWG |
2D Drawing PDF | DR-45 PDF |
Din Rail Cross Reference Guide | Din Rail Reference Guide |
