EK-50 DIN Rail Mount Enclosure
Small electronic enclosure featuring a DIN rail clip
Product Overview

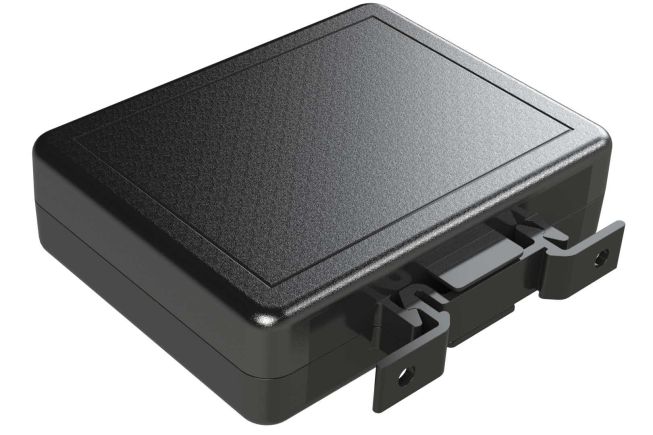

The EK-50 is a black electronic housing made from flame-retardant ABS plastic, while the DIN rail clip is constructed from noryl. The EK series offers 2 external mounting options, the clip that is designed to attach to a standard DIN-35 rail or users may opt to permanently fasten the EK to a surface using the 2 holes featured on the clip. The EK-50 includes 4 PCB mounting bosses in the base, and the opposite side of the DIN clip is designed smooth for labeling, or printing.
Specifications for
EK-50MBT
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.5 x 3.5 x 1.2 in 114 x 89 x 32 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 4.1 x 3.1 x 1.0 in 106 x 80 x 26 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.12 in |
| Weight | 0.24 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
| Din Clip | Noryl |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Components Include Hover me Most components require assembly upon delivery. | Base, cover, DIN rail clip and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | Clip for DIN rail mounting |
| Internal Mounting Option | PCB mounting bosses in base |
Inventory for
EK-50MBT
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 1146 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | EK-50 STEP |
| 2D Drawing DWG | EK-50 DWG |
| 2D Drawing PDF | EK-50 PDF |
| Other Files | EK-50 Printing Template |
| Other Files | PCB Template for Reference |
Material Specs
| EK Series Material Specs | Material Specs |
Guides
| Screw Torque Guide | Screw Torque |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Products |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
| 35mm DIN Rail Kits | DIN Rail Kits |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
| Extra Clip | EK-CLIP-M |
