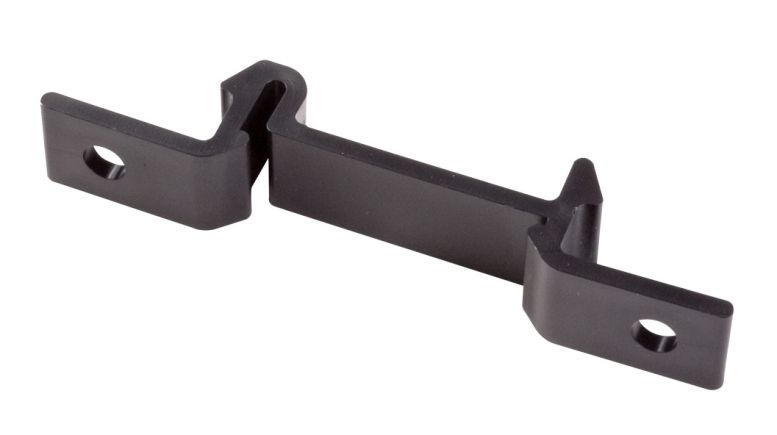

EK-CLIP-M Clip Only
Product Overview
- DIN clip only for EK Series enclosures
- Din clip is molded from Noryl
Specifications for
EK-CLIP-M
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.1 x 0.5 x 0.6 in 79 x 13 x 16 mm |
| Weight | 0.01 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Application
| Indoor/Outdoor Use | Indoor use |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| Internal Mounting Option | PCB mounting bosses in base |
Inventory for
EK-CLIP-M
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | EK-50 STEP |
| 2D Drawing DWG | EK-50 DWG |
| 2D Drawing PDF | EK-50 PDF |
