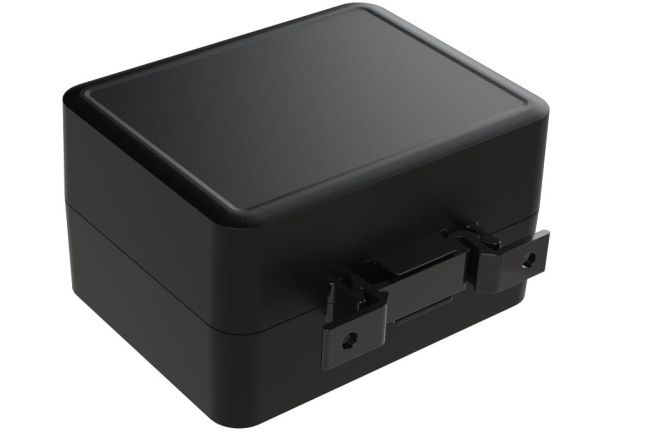

EK-52 DIN Rail Mount Enclosure
Black electronic housing that snaps onto a DIN-35 rail
Product Overview
The EK-52 is a black DIN rail enclosure made from flame-retardant ABS plastic, while the DIN rail clip is constructed from noryl. The EK series provides 2 external mounting options, the clip that is designed to attach to a standard DIN-35 rail or users may opt to permanently fasten the EK to a surface using the 2 holes featured on the clip. The EK-52 features alternatives for securing PCBs, 4 mounting bosses can be found in the base, or the PCB can be captured between the screw towers for easy assembly.
Specifications for
EK-52MBT
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
4.5 x 3.5 x 2.5 in
114 x 89 x 66 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
4.2 x 3.2 x 2.3 in
108 x 82 x 60 mm
|
| Weight | 0.31 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
| Din Clip | Noryl |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |
United States
|
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, DIN rail clip and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | Clip for DIN rail mounting |
| Internal Mounting Option |
PCB mounting bosses in base, Design captures PCB when enclosure is assembled
|
Inventory for
EK-52MBT
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 253 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | EK-52 STEP |
| 2D Drawing DWG | EK-52 DWG |
| 2D Drawing PDF | EK-52 PDF |
| Other Files | PCB Template for Reference |
| Other Files | EK-52 Printing Template |
Material Specs
| EK Series Material Specs | Material Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Series |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
| 35mm DIN Rail Kits | DIN Rail Kits |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
| Extra Clip | EK-CLIP-M |
