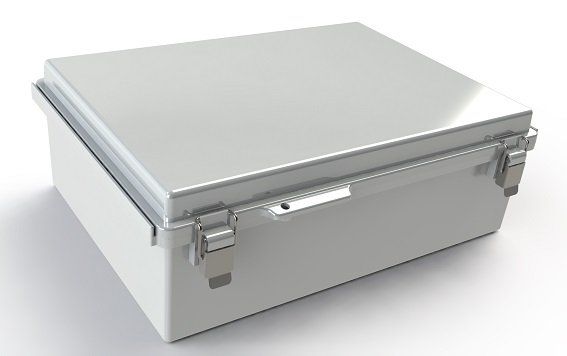

WQ-64 NEMA Hinged Enclosure

14.96 x 11.02 x 5.12 in / 379.98 x 279.91 x 130.05 mm
View Details
In stock
Unit Price $82.17
Part
WQ-64
Increase Down Increase Up
Customize It
  • Meets NEMA 4X  /  IP67 specifications
  • UL Listed to UL 508 (file no. E343339)
  • Stainless steel latches
  • Fiberglass reinforced polycarbonate base, polycarbonate cover
  • Continuous gasket
  • Designed for outdoor applications
  • PCB mounting boss screws included
Rating Specification
Flame rating UL94V-0
NEMA Rating 4X
IP Rating IP65, IP66, IP67
Color
Part # Gray Gray with Clear Cover
WQ-64-02
WQ-64-03

Optional Accessories Include:

  • Internal mounting panel and screws - WQ-64P
  • Flange kit for surface mounting - WQ-91
  • Pole mounting kit installed along width - PK-121
  • Pole mounting kit installed along length - PK-161
  • DIN Rail kit installed along width - DR-30
  • DIN Rail kit installed along length - DR-35
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-64 STEP
2D Drawing WQ-64 DWG
2D Drawing WQ-64 PDF
Material Spec WQ Material Specs
