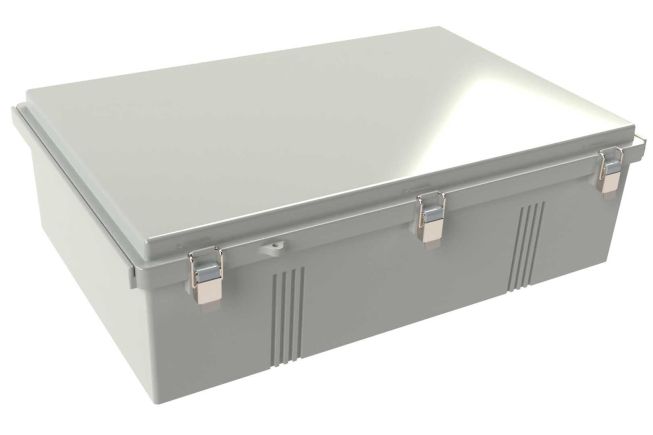

WQ-77 Hinged Weatherproof Enclosure

23.70 x 15.75 x 7.17 in / 601.98 x 400.05 x 182.12 mm
View Details
In stock
Color
Unit Price $152.95
Part
WQ-77
Increase Down Increase Up
  • UL Listed (file no. E343339)
  • NEMA 4X rated
  • Meets IP65, IP67 & IP67 specifications
  • Fiberglass reinforced polycarbonate base and polycarbonate cover
  • Stainless steel latches
  • Continuous gasket for watertight seal
  • Designed for outdoor applications: weatherproof, waterproof and corrosion-resistant
  • Area for small pad lock
  • PCB mounting boss screws included for bosses with brass inserts
  • We do not offer customization services on this enclosure
  • This item is non-returnable
RatingSpecification
Flame ratingUL94 V-0
NEMA Rating4X
IP RatingIP65, IP66, IP67
Color
Part #GrayGray with Clear Cover
WQ-77-02
WQ-77-03

Optional Accessories Include:

  • Internal mounting panel - WQ-77P
  • Flange kit for surface mounting - WQ-91
  • Pole mounting kit installed along width - PK-161
  • Pole mounting kit installed along length- PK-241
  • DIN Rail kit installed along width - DR-36
  • DIN Rail kit installed along length - DR-55
  • PCB mounting boss screws for plastic mounting bosses - SCREWS-032-50
    *PCB screws for mounting bosses with brass inserts are included with the enclosure*
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-77 STEP
2D Drawing WQ-77 DWG
2D Drawing WQ-77 PDF
