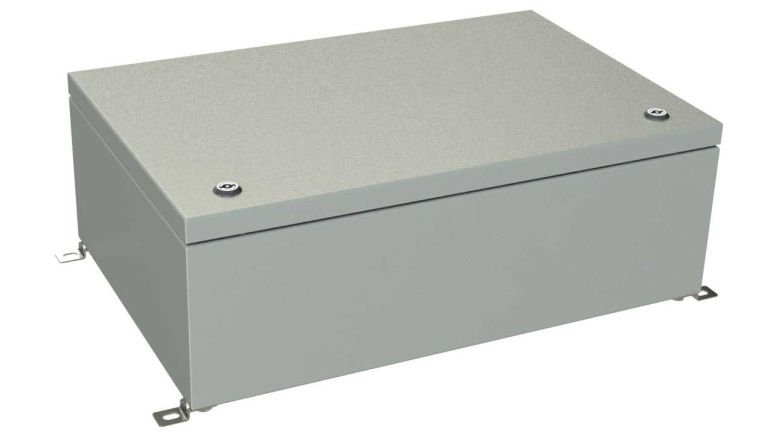

SB-51 SB Series NEMA Steel Enclosures

24.00 x 16.00 x 8.00 in. / 609.60 x 406.40 x 203.20 mm. / 23.50 lbs

  • 16 gauge steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12 (File No. E194432)
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Hinged door with keyed quarter turn latch
  • Gray powder coated finish
  • Bonding studs for grounding are provided on base and door
  • Internal panel, external mounting brackets, and hardware included
  • Touch up paint kit available SB-90

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Gray Powder Coat
    SB-51-02 Steel Yes Yes
    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4 $171.75
    5 to 9$156.29
    10 to 24$150.04
    25 to 49$136.54
    50 to 99$133.81
    100+$131.13
