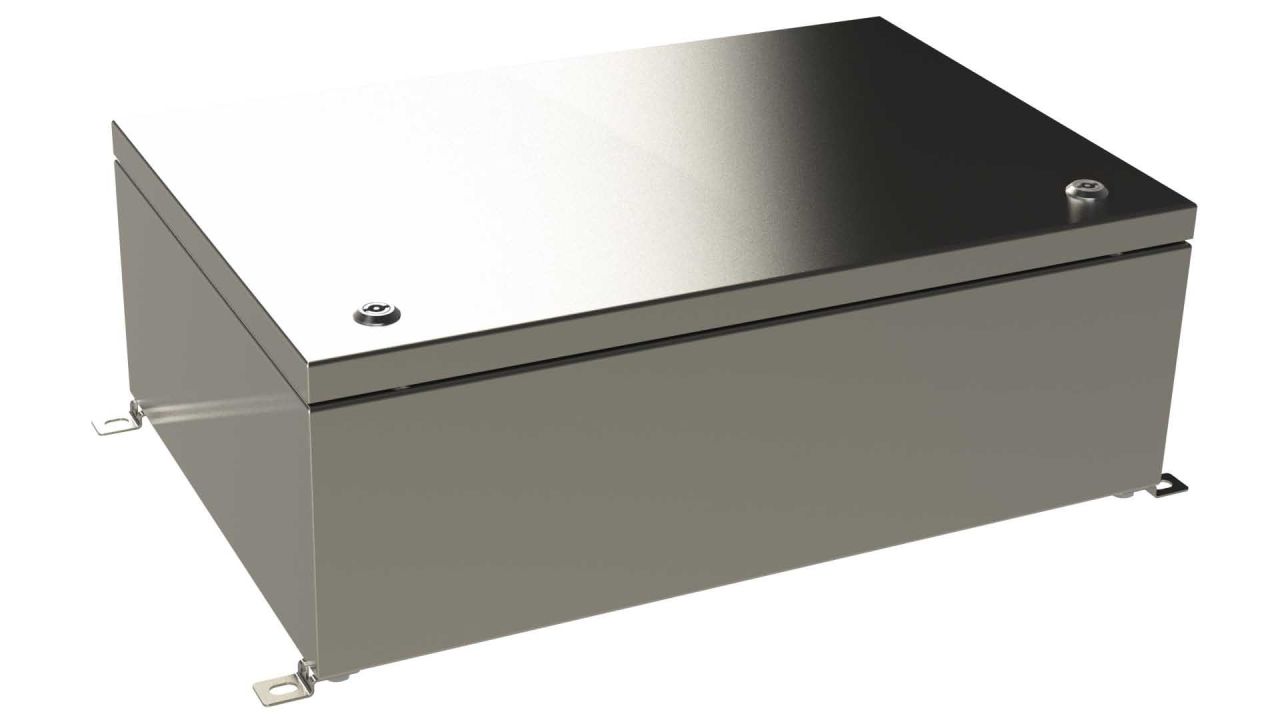

SA-51 NEMA Stainless Steel Enclosure

Large stainless steel enclosure rated for industrial electrical applications

Part
SA-51-01
External Dimensions 24 x 16 x 8.0 in
In stock
Color Natural
Qty Price / Unit
1 - 4 $788.39
5 - 9 $756.86
10 - 24 $726.58
25 - 49 $704.79
50+ $690.69
Part
SA-51-01
Increase Down Increase Up
Product Overview
The SA-51 gasketed enclosure is crafted from 304 stainless steel, and is rated up to NEMA 4X, meeting the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.
Specifications for
SA-51-01
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
24 x 16 x 8.0 in
610 x 406 x 203 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
23 x 15 x 8.1 in
601 x 398 x 208 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.06 in
Weight 34.01 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Steel Gauge 16
Base Stainless steel
Cover Stainless steel
Gasket Formed-in-place polyurethane
Application
Indoor/Outdoor Use Outdoor use
Waterproof Yes
General
Series
Color Natural
Country of Origin China
Returnable No
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Gasketed enclosure, internal panel, external mounting feet, and hardware
External Mounting Style Surface mounting kit (included)
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (included)
Ratings
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
IP65, IP66
Inventory for
SA-51-01
In stock
Number of Units in Stock Hover me Stock available to ship within 1-2 business days 5
Additional Stock
Ready To Ship in 2 Weeks 30
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 2 to 16 weeks
Returnable No

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.

Downloads

Models & Drawings
3D Model SA-51 STEP
2D Drawing DWG SA-51 DWG
2D Drawing PDF SA-51 PDF
Other Files SA-51 Pole Mount Kit Assembly
Certifications & Testing
USMCA Certificate of Origin USMCA SA/SB Series

Accessory Guide

Optional Accessories
Pole Mounting Kit (Installed Along Width) PK-163
Pole Mounting Kit (Installed Along Length) PK-280
Cable Management & Venting Accessories Cable Glands & Vents
Spare Parts
Spare Key for Latch SB-KEY-01
