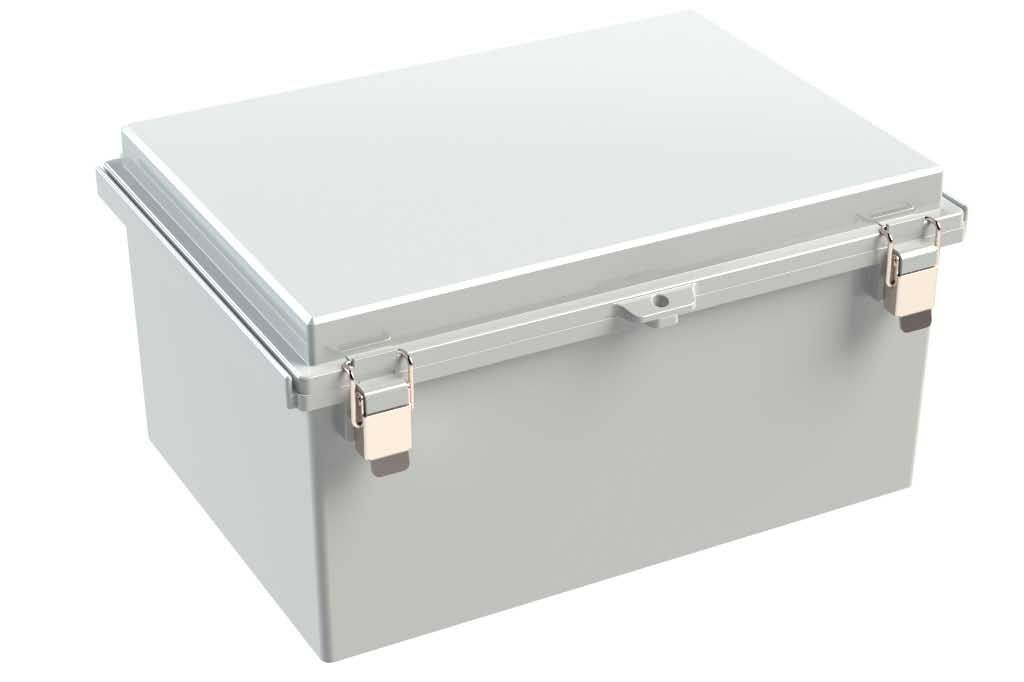

WQ-62 Hinged Weatherproof Enclosure

13.78 x 9.84 x 7.24 in / 350 x 250 x 184 mm
View Details
In stock
Color
Unit Price $76.33
Part
WQ-62
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • UL & cUL Listed (file no. E194432)
  • NEMA 4X rated
  • Meets IP65 & IP66 specifications based on UL Listing
  • IP67 rated
  • Fiberglass reinforced polycarbonate base and polycarbonate cover
  • Stainless steel latches
  • Continuous gasket for a watertight seal
  • Designed for outdoor applications: weatherproof, waterproof and corrosion-resistant
  • Area for small padlock
  • PCB mounting boss screws included for bosses with brass inserts
RatingSpecification
Flame ratingUL94 V-0
NEMA Rating4X
IP EquivalentIP65, IP66, IP67
Color
Part #GrayGray with Clear Cover
WQ-62-02
WQ-62-03

Optional Accessories Include:

  • Internal mounting panel - WQ-62P
  • Flange kit for surface mounting - WQ-91
  • Pole mounting kit installed along width - PK-121
  • Pole mounting kit installed along length - PK-161
  • DIN Rail kit installed along width - DR-29
  • DIN Rail kit installed along length - DR-31
  • PCB mounting boss screws for plastic mounting bosses - SCREWS-032-50
    *PCB screws for mounting bosses with brass inserts are included with the enclosure*
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-62 STEP
2D Drawing WQ-62 DWG
2D Drawing WQ-62 PDF

Customization Services

CNC Machining

Receive your enclosures with the cutouts you need, so they are ready to go to work for you.
Learn More

Digital Printing

Weatherproof and chemical-resistant ink printed directly onto the enclosure, that won't peel, bubble or scratch.
Learn More
