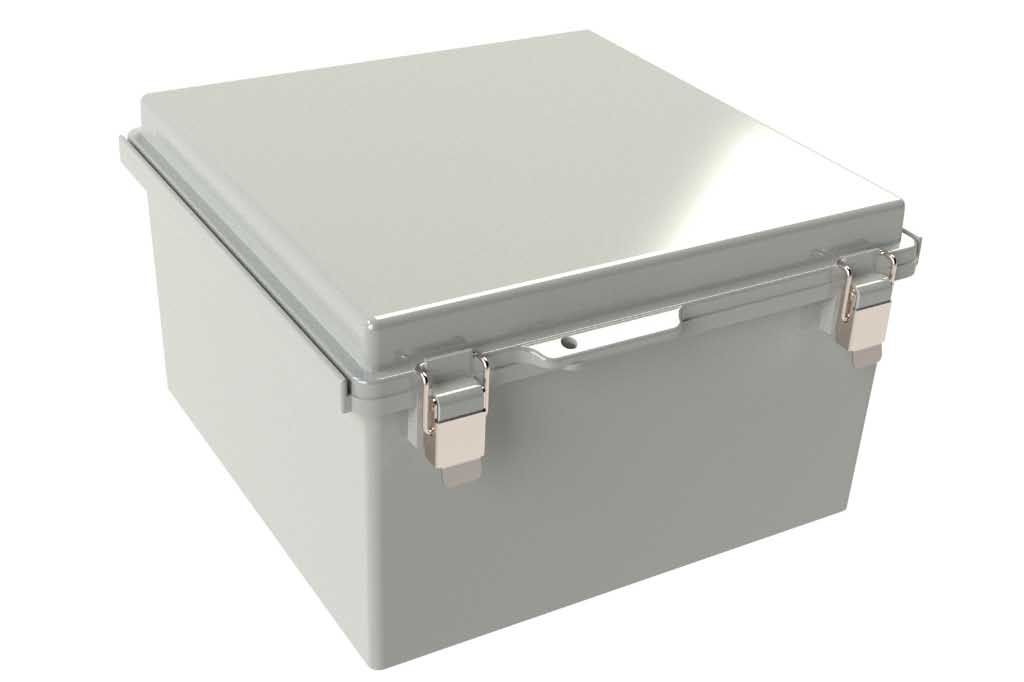

WQ-66 Hinged Waterproof Box
11.81 x 11.81 x 7.15 in / 299.97 x 299.97 x 181.61 mm
View Details
In stock
- UL & cUL Listed (file no. E194432)
- NEMA 4X rated
- Meets IP65, IP67 & IP67 specifications
- Fiberglass reinforced polycarbonate base and polycarbonate cover
- Stainless steel latches
- Continuous gasket for watertight seal
- Designed for outdoor applications: weatherproof, waterproof and corrosion-resistant
- Area for small pad lock
- PCB mounting boss screws included for bosses with brass inserts
| Color | ||
|---|---|---|
| Part # | Gray | Gray with Clear Cover |
| WQ-66-02 | ||
| WQ-66-03 | ||
Optional Accessories Include:
- Internal mounting panel - WQ-66P
- Flange kit for surface mounting - WQ-91
- Pole mounting kit installed along width or length - PK-121
- DIN Rail kit installed along width or length - DR-20
- PCB mounting boss screws for plastic mounting bosses - SCREWS-032-50
*PCB screws for mounting bosses with brass inserts are included with the enclosure* - Cable glands, seals, plugs and venting accessories - Cable Management and Venting
Models, Drawings, Material Specs and Other Files
3D Model
WQ-66 STEP
2D Drawing
WQ-66 DWG
2D Drawing
WQ-66 PDF
Material Spec
WQ Series Material Specs
Other Files
WQ-66 Printing Area Template
