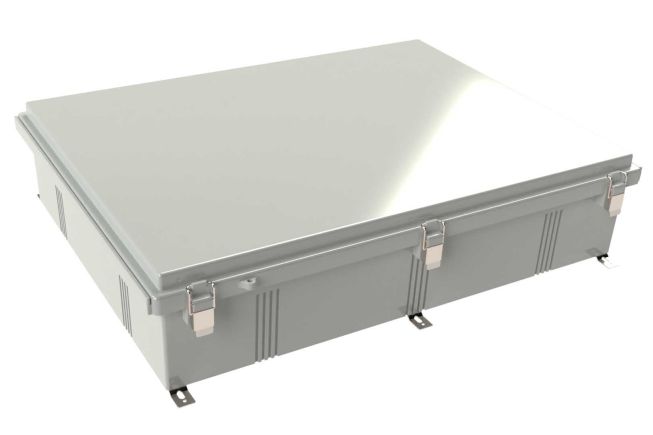

WQ-83 Hinged Weatherproof Enclosure
Cabinet-style enclosure with hinges, designed for waterproof applications
Product Overview
The WQ-83 cabinet-style housing with hinges is constructed from gray fiberglass reinforced polycarbonate and includes feet for surface mounting, it's made complete with stainless steel latches, a small padlock hasp, and a continuous gasket in the cover for a watertight seal. Secure your PCB utilizing the 16 mounting bosses in the base, or use the mounting panel or DIN rail kit (sold separately). This part is not eligible for customization.
Specifications for
WQ-83-02
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
32 x 24 x 7.3 in
830 x 630 x 187 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
29 x 22 x 6.9 in
752 x 560 x 176 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.177 in |
| Weight | 20.56 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Fiberglass-reinforced polycarbonate |
| Cover | Polycarbonate |
| Latch | Stainless steel |
| Gasket | Formed-in-place polyurethane |
| Mounting Feet | Stainless steel |
Application
| Indoor/Outdoor Use | Outdoor use |
| UV Resistant | Yes |
| Waterproof | Yes |
Inventory for
WQ-83-02
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 33 |
| Ready To Ship in 2 Weeks | 34 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 16 weeks |
| Returnable | No |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | WQ-83 STEP |
| 2D Drawing DWG | WQ-83 DWG |
| 2D Drawing PDF | WQ-83 PDF |
Material Specs
| WQ Series Material Specs | Material Specs |
Guides
| Pole Mount Assembly Guide | WQ Series Pole Mount Assembly |
Certifications & Testing
| USMCA Certificate of Origin | USMCA WH/WQ Series |
Accessory Guide
Optional Accessories
| Internal Mounting Panel | WQ-83P |
| DIN Rail Kit (Installed Along Length) | DR-75 |
| DIN Rail Kit (Installed Along Width) | DR-55 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
Mounting Boss Screws
| PCB Mounting Boss Screws (bosses without brass inserts) | SCREWS-032-50 |
Frequently Bought Together
-
DR-75 DIN Rail KitAs low as $7.87 -
Hole PlugAs low as $1.29 -
WQ-83P Panel for WQ-83 EnclosuresAs low as $43.13 -
CG3 Gray Cable GlandsAs low as $1.12 -
DR-55 DIN Rail KitAs low as $6.56 -
UA-006 Vent PlugAs low as $2.31
