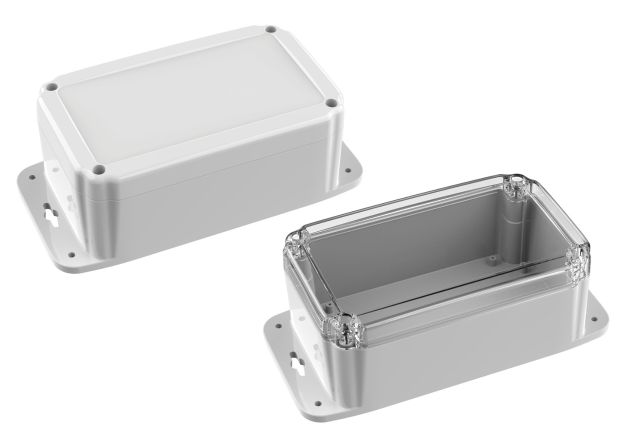

ML-47F Outdoor NEMA Enclosure

7.63 x 4.63 x 3.09 in / 193.80 x 117.60 x 78.49 mm
View Details
In stock
Unit Price $26.46
Increase Down Increase Up
Customize It
  • Rated to NEMA 4X & 6P (all ratings listed on ratings tab)
  • Meets IP66 & IP68 requirements
  • UL Listed to UL 508A, Type 1, 2, 4, 4X, 6, 6P, 12 & 13 (File E352997) UL Cert of Compliance
  • Designed and tested for a wide variety of outdoor applications and adverse conditions
  • Molded from durable, UV stabalized polycarbonate
  • Continuous silicone rubber gasket to ensure watertight seal
  • Stainless steel screws thread into brass inserts for cover on/cover off applications
  • Plastic PCB mounting bosses in base
  • Corrosion resistant and light weight
  • Molded on flanges for surface mounting
  • Clear or gray cover to fit your application
  • Assembly includes base, gasketed cover, and 4 enclosure screws
Flame ratingUL94 V-0, UL746C 5VA
NEMA Rating1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP RatingIP65, IP66, IP67, IP68
Part #GrayGray with Clear Cover

Optional Accessories Include:

Models, Drawings, Material Specs and Other Files

3D Model ML-47F STEP
2D Drawing ML-47F DWG
2D Drawing ML-47F PDF
Material Spec ML Material Specs
