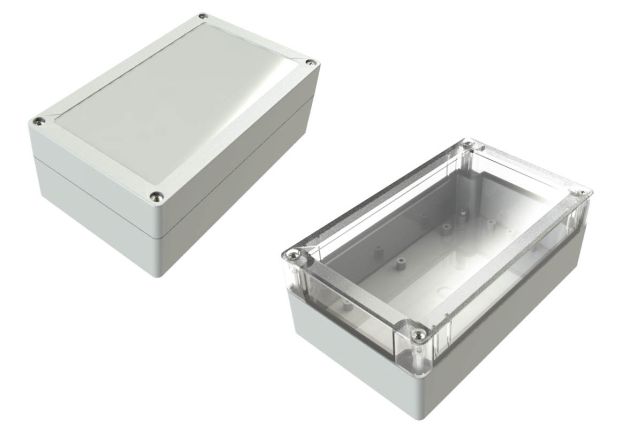

SG-22 Weatherproof NEMA Enclosure
7.95 x 4.80 x 2.91 in / 201.93 x 121.92 x 73.91 mm
View Details
In stock
- Made in Germany by Spelsberg
- UL & cUL Listed to UL 508, Type 4X & 12 specifications (File E254144)
- Meets IP66 / IP67 specifications (IEC of EN60529)
- IK08 impact rating (DIN EN 50102)
- Protection class: II - isolate protection (VDE 0106)
- Rated insulation voltage - AC: 690 V / DC: 1000
- Polyurethane gasket
- 4 PCB mounting boss screws included
| Color | ||
|---|---|---|
| Part # | Gray | Gray with Clear Cover |
| SG-22-02 | ||
| SG-22-03 | ||
Optional Accessories Include:
- Internal mounting panel and screws - SG-22P
- Flange kit for surface mounting - SG-99
- Quick turn cover screws for on-off convenience - SCREWS-021
- PCB mounting boss screws - SCREWS-022
- Cable glands, seals, plugs and venting accessories - Cable Management and Venting
- Adhesive PCB mounting standoffs - MB-01-20
Models, Drawings, Material Specs and Other Files
3D Model
SG-22 STEP
2D Drawing
SG-22 DWG
2D Drawing
SG-22 PDF
Material Spec
SG Material Specs
Other Files
SG Series UL Cert
Other Files
SG-22 Printing Template
