Part
SCREWS-022-100
External Dimensions 0.46 x 0.28 x 0.28 in
In stock
Color Metallic
QtyPrice / Unit
1 - 249 $8.50
250+ $7.65
Part
SCREWS-022-100
Increase Down Increase Up
Product Overview

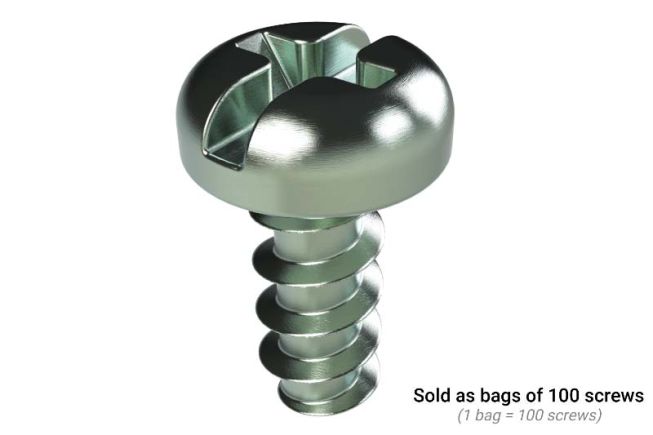

Sold in bags of 100 screws (1 bag = 100 screws), the 3.85mm X 9mm thread-forming screws (SCREWS-022-100) serve as PCB Mounting boss screws for SK Series (SK-18, SK-19, SK-20, SK-21 & SK-22) as well as for SG Series. These screws are designed for secure and efficient PCB mounting in the specified enclosure models.
Specifications for
SCREWS-022-100
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
0.46 x 0.28 x 0.28 in
12 x 7 x 7 mm
Weight 0.20 lbs
Screw Size 3.85mm x 9mm
2d Drawing PDF Download 2D Drawing PDF
Material Details
Product Material Steel
General
Series
Color Metallic
Country of Origin Germany
Screw Type Thread forming
Screw Use Circuit board assembly
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. 1 bag contains 100 screws

Downloads

Models & Drawings
2D Drawing PDF SK-SG PCB Screws PDF

Enclosure Guide

Compatible Enclosures
SG Series NEMA Enclosures SG Series
SK Series Knockout Enclosures SK-18 , SK-19 , SK-20 , SK-21 , SK-21
