SK-19 Enclosure with Knockouts

Medium sized junction housing with metric knockouts

External Dimensions 7.17 x 7.09 x 3.54 in
In stock
Unit Price $47.29
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

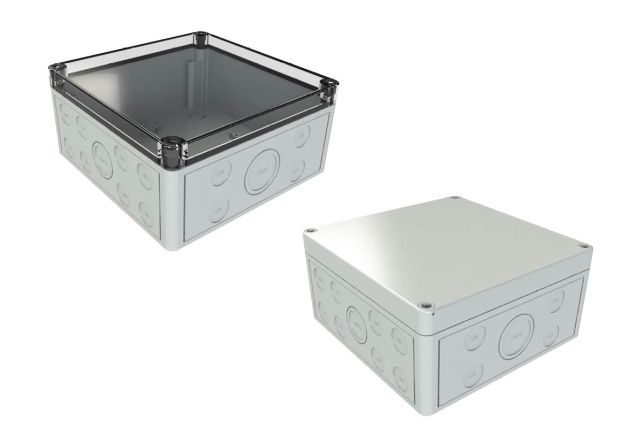

The SK-19 knockout enclosure is molded from fiberglass reinforced gray polycarbonate and comes standard with a polyurethane gasket, and PCB mounting bosses in the base. Designed for versatility, captive plastic machine screws are utilized to assemble the enclosure for easy cover on/off convenience, while the 24 x M20; 2 x M25/32; 2 x M32/40 metric knockouts can be easily removed with the use of a flathead screw driver or similar tool to create cable pass-throughs in the field. The all-plastic enclosure provides the option of a tinted clear cover for quick monitoring of internal components, or a gray cover for applications where privacy and consistency is important.
Specifications for
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
End Panel
End Cap
Mounting Flange
Mounting Feet
Din Clip
DIN Rail
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
UV Resistant
EMI/RFI Attenuation
Country of Origin
Screw Type
Screw Use
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
Updated: 07/20/24 01:01 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.


Models & Drawings
3D Model SK-19 STEP
2D Drawing DWG SK-19 DWG
2D Drawing PDF SK-19 PDF
Other Files SK-19 Printing Template
Material Specs
SK Series Material Specs Material Specs
SK Series Knockout Instructions Knockout Instructions

Accessory Guide

Optional Accessories
Internal Mounting Panel SK-19K
Surface Mounting Kit SK-99
DIN Rail Kit (Installed Along Width or Length) DR-37
Adhesive PCB Mounting Standoffs MB-01-20
Cable Management & Venting Accessories Cable Glands & Vents

Part Numbers

Part # Gray Gray with Clear Cover
