Part
SCREWS-021-6
External Dimensions 1.83 x 0.34 x 0.34 in
In stock
Color Metallic
QtyPrice / Unit
1 - 249 $4.59
250+ $4.02
Part
SCREWS-021-6
Increase Down Increase Up
Product Overview

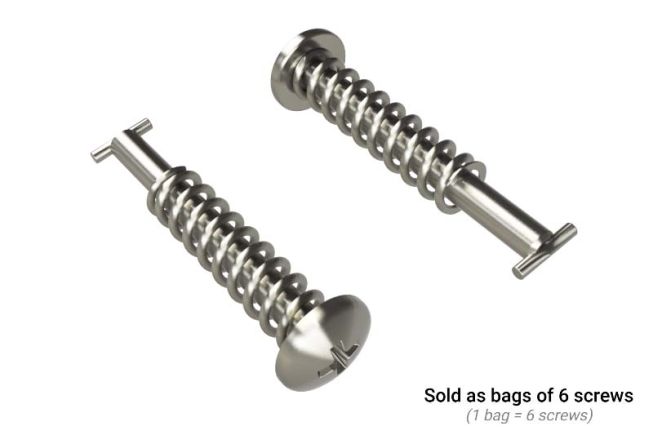

Available in bags of 6 screws (1 bag = 6 screws), these 43mm quick-turn screws are designed for SG-13, SG-14, SG-15, SG-16, SG-20, and SG-22 enclosures. Made of stainless steel, these screws provide durability and convenient closure of the enclosures. However, it's important to note that using these quick-turn screws in place of the standard screw voids the UL 4X listing on the enclosure.
Specifications for
SCREWS-021-6
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
1.83 x 0.34 x 0.34 in
46 x 9 x 9 mm
Weight 0.05 lbs
Screw Size 43MM
Material Details
Product Material Stainless steel
General
Series
Color Metallic
Country of Origin Germany
Screw Type Quick-turn
Screw Use Cover assembly
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. 1 bag contains 6 screws

Enclosure Guide

Compatible Enclosures
SG Series NEMA Enclosures SG-13 , SG-14 , SG-15 , SG-16 , SG-20 , SG-22
