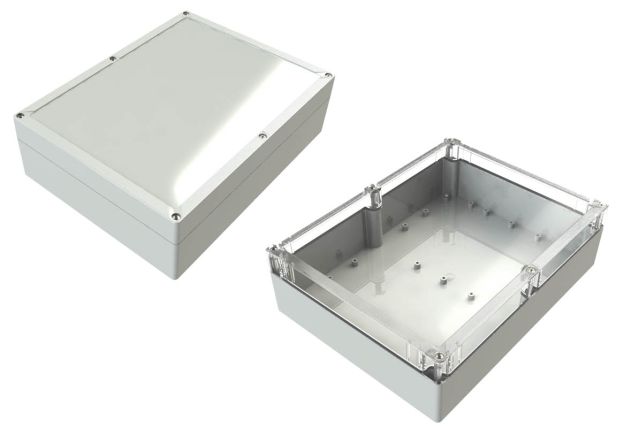

SG-20 Weatherproof NEMA Enclosure

11.89 x 9.13 x 3.54 in / 302.01 x 231.90 x 89.92 mm
View Details
In stock
Unit Price $63.42
Part
SG-20
Increase Down Increase Up
Customize It
  • Made in Germany by Spelsberg
  • UL Listed to UL 508, Type 4X & 12 specifications (File E208470)
  • Meets IP66 / IP67 specifications (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Polyurethane gasket
  • 4 PCB mounting boss screws included
Rating Specification
Flame rating UL94V-2
NEMA Rating 4X, 12
IP Rating IP65, IP66, IP67
Impact Rating IK08 (DIN EN 50102)
Color
Part # Gray Gray with Clear Cover
SG-20-02
SG-20-03

Optional Accessories Include:

Models, Drawings, Material Specs and Other Files

3D Model SG-20 STEP
2D Drawing SG-20 DWG
2D Drawing SG-20 PDF
Material Spec SG Material Specs
