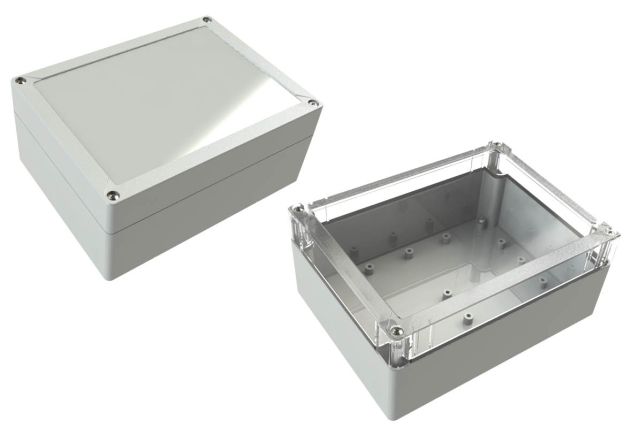

SG-14 SG Series Weatherproof NEMA Enclosures

7.95 x 5.98 x 3.54 in. / 201.93 x 151.89 x 89.92 mm. / 1.13 lbs

  • Made in Germany by Spelsberg
  • UL Listed to UL 508, NEMA Type 4X & 12 specifications (File E208470)
  • Meets IP66 / IP67 specifications (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Polyurethane gasket
  • 4 PCB mounting boss screws included
  • Optional accessories include flange kitquick-turn screws and internal panel

3D Models

2D Drawings

Material Specifications

   Flame RatingCover ColorWaterproof
Part Number Material UL 94 UL 746C Gray Clear Gasket
SG-14-02 Polycarbonate V-2 5VA Yes   Yes
SG-14-03 Polycarbonate V-2 5VA   Yes Yes
Options & Pricing
Application
Category
Color
Cover Color
IP Rating
Material
NEMA Rating
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$29.38
10 to 49$26.47
50 to 99$24.61
100 to 249$23.38
250 to 499$22.21
500 to 999$21.10
1000+$0.00
