SG-15 Weatherproof NEMA Enclosure

9.92 x 6.38 x 4.72 in / 252 x 162 x 120 mm
View Details
In stock
Color
Unit Price $55.46
Part
SG-15
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • Made in Germany by Spelsberg
  • UL & cUL Listed to UL 508, NEMA Type 4X & 12 specifications (File E254144)
  • IP65, IP66 & IP67 rated
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Polyurethane gasket
  • 4 PCB mounting boss screws included
RatingSpecification
Flame ratingUL94 V-2, UL746C 5VA
NEMA Rating4X, 12
IP EquivalentIP65, IP66, IP67
Impact RatingIK08 (DIN EN 50102)

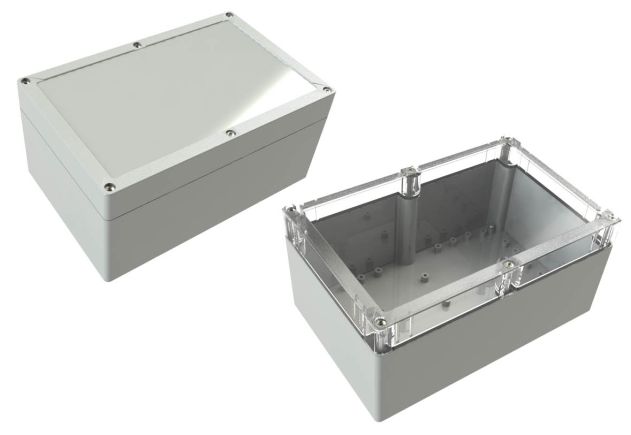

Color
Part #GrayGray with Clear Cover
SG-15-02
SG-15-03

Optional Accessories Include:

  • Internal mounting panel and screws - SG-15P
  • DIN Rail kit installed along width - DR-37
  • DIN Rail kit installed along length - DR-42
  • DIN Rail kit installed along short width - DR-09
  • Flange kit for surface mounting - SG-99
  • Quick turn cover screws for on-off convenience - SCREWS-021
  • PCB mounting boss screws - SCREWS-022
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting
  • Adhesive PCB mounting standoffs - MB-01-20

Models, Drawings, Material Specs and Other Files

3D Model SG-15 STEP
2D Drawing SG-15 DWG
2D Drawing SG-15 PDF
Material Spec SG Material Specs
Other Files SG Series UL Cert
