Part
SG-15P
External Dimensions 9.53 x 5.98 x 0.06 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $14.14
10 - 49 $12.44
50 - 99 $11.20
100 - 249 $10.08
250 - 499 $9.37
More
Part
SG-15P
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

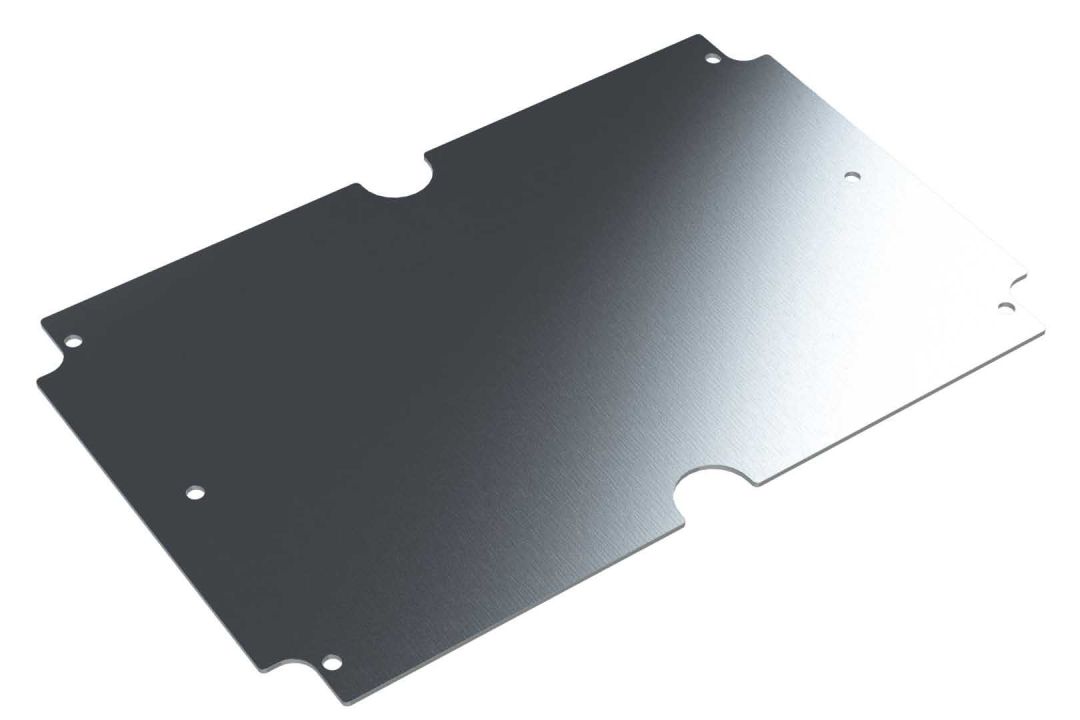

The SG-15P internal aluminum mounting panel, featuring a natural finish, is designed to fasten to the mounting bosses inside the base of the SG-15 enclosure. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the compatible enclosure.
Specifications for
SG-15P
Dimensions
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. 9.53 x 5.98 x 0.06 in
External Dimensions (mm) 242 x 152 x 2 mm
Weight 0.33 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
General
Series SG Series Accessories
Color Metallic
Country of Origin United States United States
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel only (assembly screws included with purchase of enclosure)

Downloads

Models & Drawings
3D Model SG-15P STEP
2D Drawing DWG SG-15P DWG
2D Drawing PDF SG-15P PDF

Enclosure Guide

Compatible Enclosures
SG Series NEMA Enclosures SG-15
