External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 7.59 x 4.44 x 0.06 in |
External Dimensions (mm) | 193 x 113 x 2 mm |
Weight | 0.19 lbs |
2d Drawing PDF | Download 2D Drawing PDF |

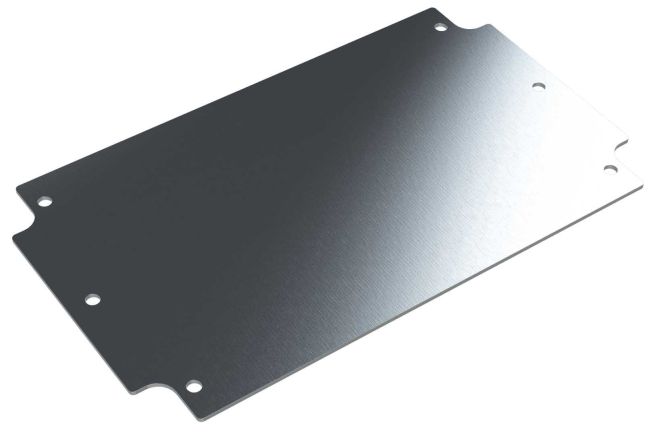

Panel | Aluminum |
3D Model | SG-22P STEP |
2D Drawing DWG | SG-22P DWG |
2D Drawing PDF | SG-22P PDF |
SG Series NEMA Enclosures | SG-22 |
