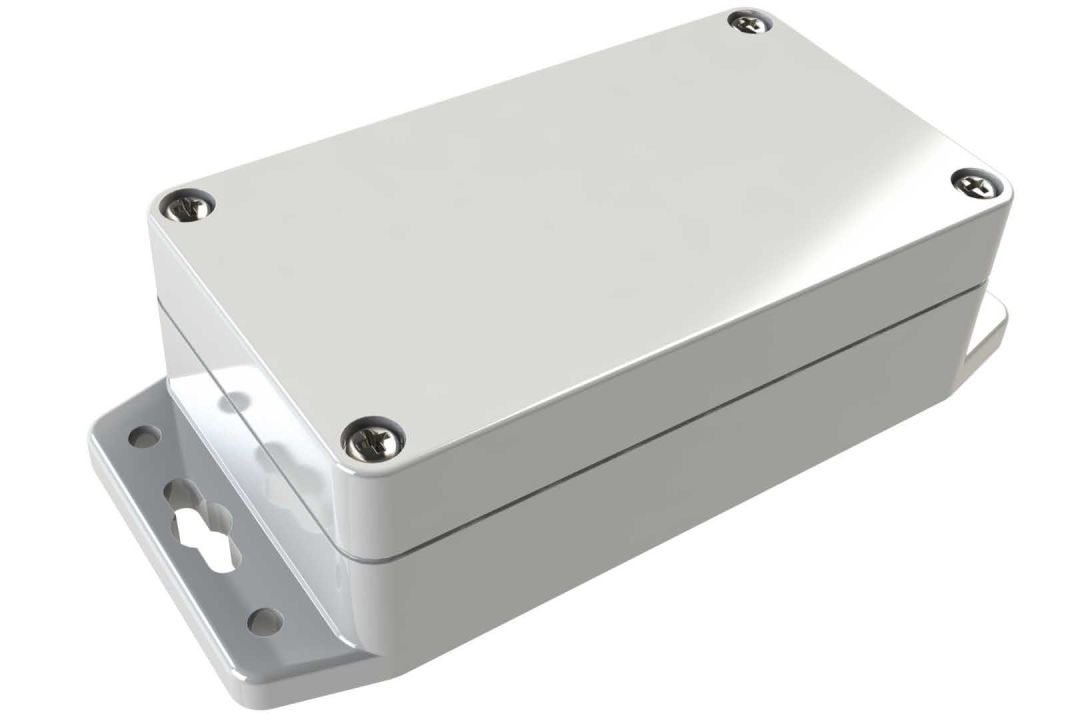

WP-21F Polycarbonate NEMA Enclosure
Low-profile flanged enclosure for IoT applications
Product Overview
The WP-21F low-profile enclosure is constructed from gray impact-resistant polycarbonate, it comes standard with molded on mounting flanges located at the base and a silicone rubber gasket in the cover for protection against harsh outdoor conditions. Secure your PCB easily utilizing the 4 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WP-21F*15
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.53 x 2.56 x 1.57 in 115 x 65 x 40 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 4.22 x 2.25 x 1.36 in 107 x 57 x 35 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.118 in |
| Weight | 0.29 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | Polycarbonate |
| Cover | Polycarbonate |
| Gasket | Silicone |
| Assembly Screws | Stainless steel |
Application
| Application | Outdoor use |
| UV Resistant | Yes |
| Waterproof | Yes |
Downloads
Models & Drawings
| 3D Model | WP-21F STEP |
| 2D Drawing DWG | WP-21F DWG |
| 2D Drawing PDF | WP-21F PDF |
| Other Files | WP-21F Printing Template |
Material Specs
| WC & WP Series Material Specs | Polycarbonate Specs |
Accessory Guide
Optional Accessories
| Internal Mounting Panel | WX-14 |
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
Frequently Bought Together
WX-14 Panel for WA/WP/WC Series EnclosuresAs low as $5.20
PCB Mounting Boss Screws (bag of 100)As low as $2.71
CG3 Gray Cable GlandsAs low as $1.12
Air VentAs low as $2.92
Hooked Air VentAs low as $3.05
CG1 Black Cable GlandsAs low as $1.40
Hole PlugAs low as $1.29
Vent PlugAs low as $2.31
Compare with Similar Items
| Customer Rating |
| External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
| Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
| Country of Origin |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. |
| Color |
| Material |
| Application |
| NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer. |
| IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org. |
| Mounting Style |
| Internal Mounting Option |
| Features |
4.53 x 2.56 x 1.57 in |
4.22 x 2.25 x 1.36 in |
Taiwan, Province of China |
2-16 weeks |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
4.53 x 2.56 x 1.57 in |
4.21 x 2.24 x 1.38 in |
Taiwan, Province of China |
2-16 weeks |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
4.50 x 2.63 x 2.05 in |
4.13 x 2.26 x 1.74 in |
United States |
Up to 4 weeks |
Gray or Gray with Clear Cover |
Polycarbonate |
Outdoor use |
|
|
|
4.63 x 2.63 x 1.63 in |
4.16 x 2.13 x 1.20 in |
United States |
1 week |
Black or Gray |
Polycarbonate |
Outdoor use |
|
|
|
4.53 x 2.56 x 1.57 in |
4.22 x 2.25 x 1.36 in |
Taiwan, Province of China |
2-16 weeks |
Gray with Clear Cover |
Polycarbonate |
Outdoor use |
|
|
|
