HD-24F NEMA Polycarbonate Enclosure

Long polycarbonate electronic enclosure with flanges

Part
HD-24F
External Dimensions 4.63 x 2.63 x 1.63 in
In stock
Color
Unit Price $9.65
Part
HD-24F
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

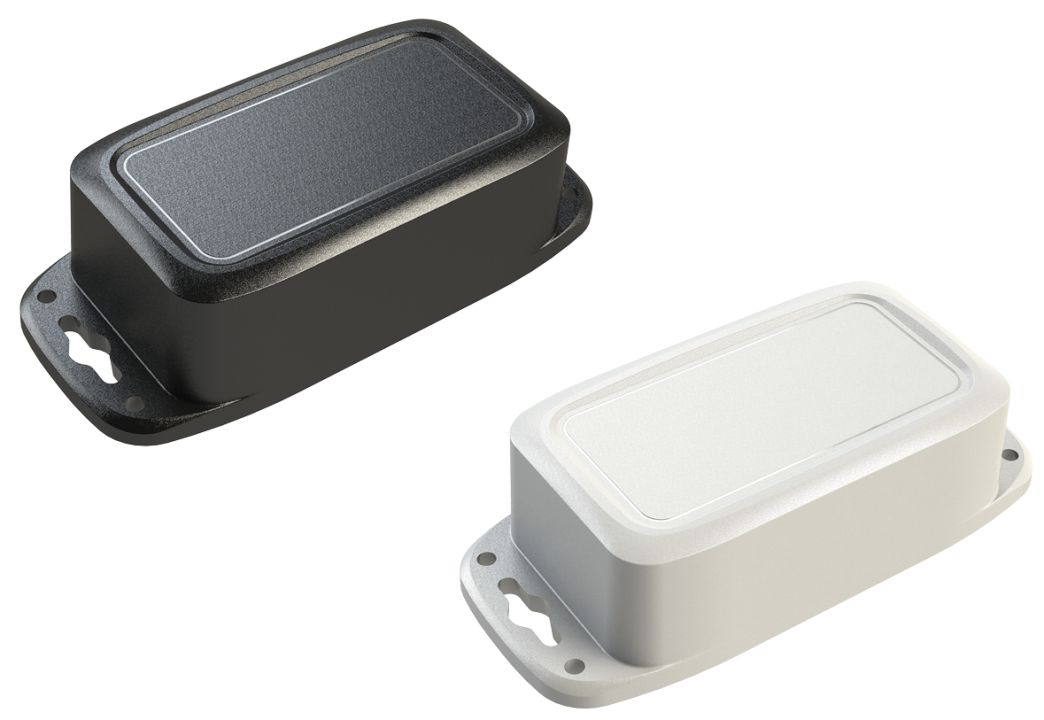

The HD-24F is a long 4.63" x 2.63" x 1.63" waterproof enclosure featuring a silicone rubber gasket. Molded on mounting flanges allow for simple surface mounting while the extra deep cover fastens from the base to hide the screws when mounted, providing both security and added aesthetics. PCB mounting bosses come standard with 4 molded in the base and 4 molded in the cover. Available in gray or black polycarbonate, this enclosure is ideal for electronics in a variety applications such as video/audio/lighting, controls and sensors or security.
Specifications for
HD-24F
Dimensions
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
External Dimensions (mm)
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details.
Internal Dimensions (mm)
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied with cable gland.
Metric Knockouts
2d Drawing PDF
