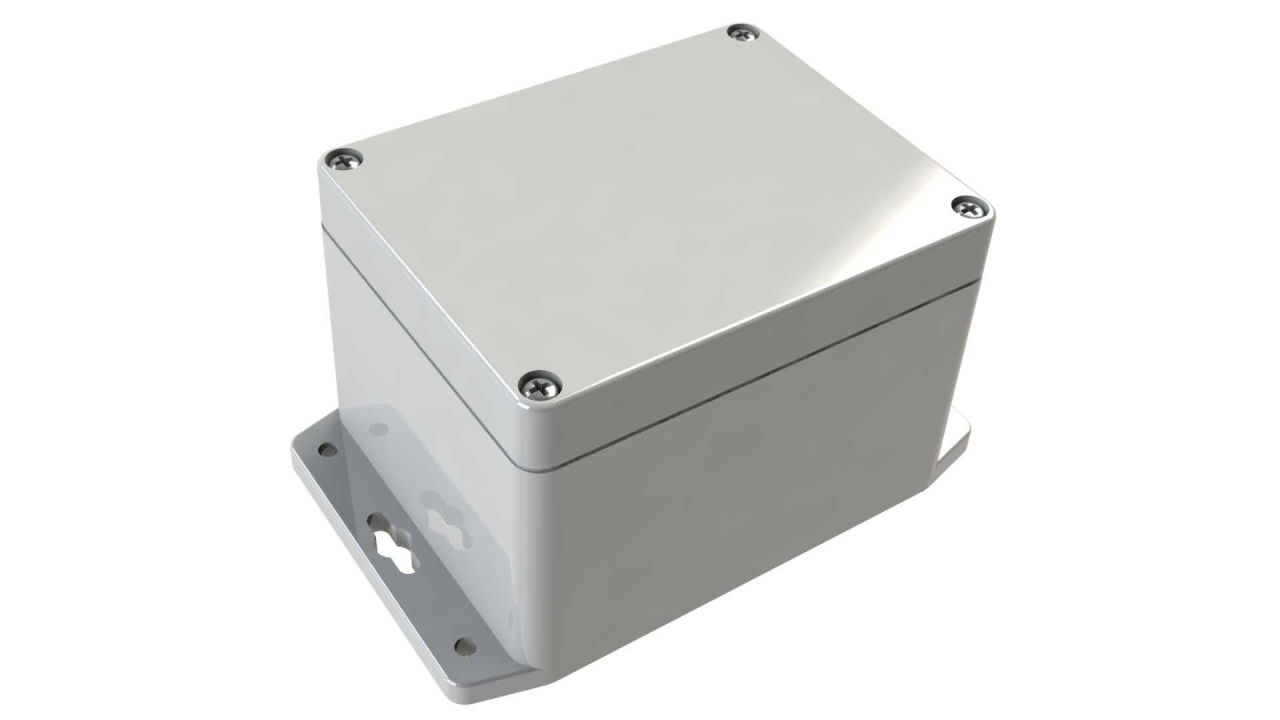

WP-28F WP Series Polycarbonate NEMA Enclosures

4.53 x 3.54 x 3.15 in. / 115.06 x 89.92 x 80.01 mm. / 0.40 lbs

Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
UL Listed to UL508-4x specifications (File E194432)
Silicone rubber gasket
(12) Plastic PCB mounting bosses
Durable, impact-resistant UV Stabilized Polycarbonate material
Assembly includes base, gasketed cover, and 4 enclosure screws
Internal mounting panel WX-18 available as an accessory

3D Models

WP-28F STEP

2D Drawings

Material Specifications

Material Specs

			STANDARD COLOR	WATERPROOF
Part Number	Material	Flame Rating	Light Gray	Gasket
WP-28F*15	Flame Retardant Polycarbonate	UL94-HB

Options & Pricing

Quantity	Price
1 to 9	$15.25
10 to 49	$12.69
50 to 99	$11.45
100 to 249	$10.10
250 to 499	$9.59
500 to 999	$9.11
1000+	$0.00

Quantity

PCB Mounting Boss Screws
($3.82 per bag of 100)No. of Bags
