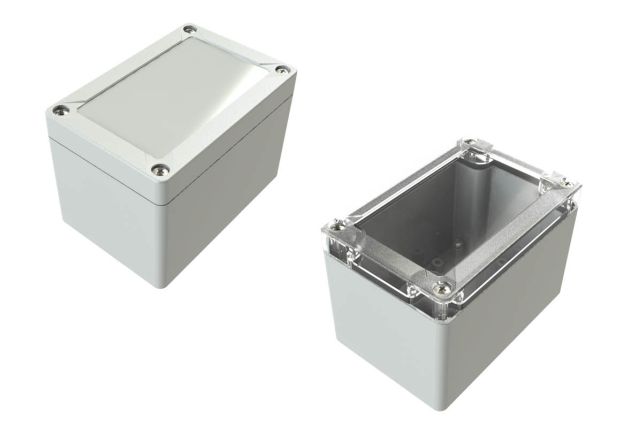

SG-18 SG Series Weatherproof NEMA Enclosures

4.80 x 3.23 x 3.31 in. / 121.92 x 82.04 x 84.07 mm. / 0.45 lbs

  • Made in Germany by Spelsberg
  • UL Listed to UL 508, Type 4X & 12 specifications (File E208470)
  • Meets IP66 / IP67 specifications (IEC of EN60529)
  • IK08 impact rating (DIN EN 50102)
  • Protection class: II - isolate protection (VDE 0106)
  • Rated insulation voltage - AC: 690 V / DC: 1000
  • Polyurethane gasket
  • 4 PCB mounting boss screws included
  • Optional accessories include flange kitquick-turn screws and mounting panel

3D Models

2D Drawings

Material Specifications

  Flame Rating Cover ColorWaterproof
Part Number Material UL 94 UL 746C Gray Clear Gasket
SG-18-02 Polycarbonate V-2 5VA Yes   Yes
SG-18-03 Polycarbonate V-2 5VA   Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$17.88
10 to 49$16.11
50 to 99$14.98
100 to 249 $14.23
250 to 499$13.52
500 to 999$12.85
1000+$12.20
